Variable Frequency Drives (VFDs) are transforming how we manage energy consumption and performance in HVAC systems. As technology continues to advance, VFDs are becoming smaller, more reliable, and increasingly essential in optimizing both the efficiency and flexibility of HVAC equipment. Commonly referred to as Variable Speed Drives (VSDs), these devices control the speed of motors used in fans and pumps. They can also offer significant advantages in various applications, such as cooling towers, air handling units (AHUs), and chilled water pumping systems.
What is a VFD in HVAC?

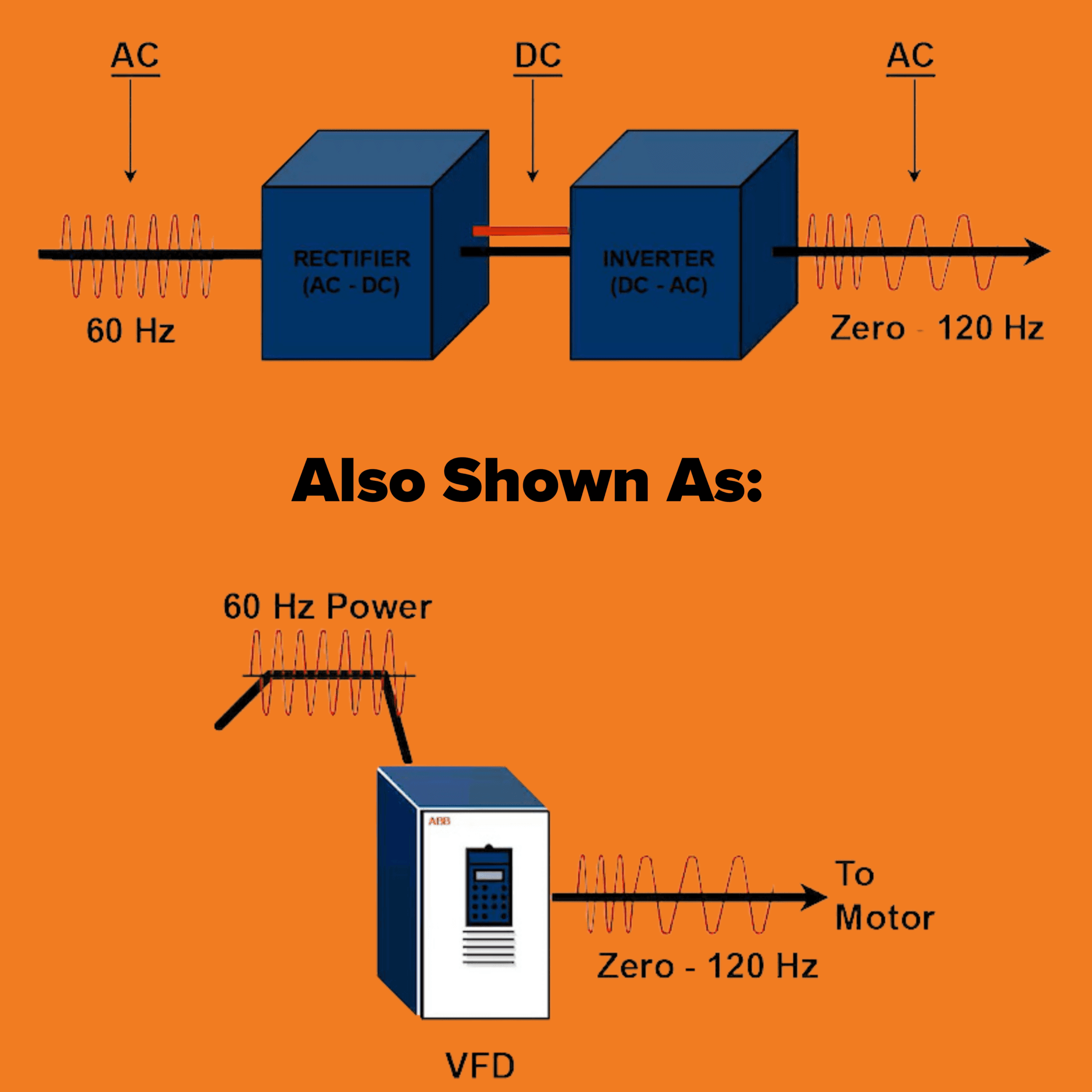

Diagram showing how VFDs control hertz output from ABB
At its core, a Variable Frequency Drive adjusts the power supplied to an electric motor, altering the motor’s speed and output. They do this by controlling the hertz (Hz) delivered to the motor. A VFD allows operators to increase or decrease the motor’s RPM without needing to adjust physical components like belts or sheaves.
Consider a motor that typically runs at 1800 RPM with 60 Hz of power. By reducing the input to 30 Hz via a VFD, you would cut the motor’s speed to 900 RPM. A variable frequency drive allows you to adjust the hertz (to 30 or 70 or 80 etc.) and get a different number of RPM with the same fan. This flexibility makes VFDs a favorite for HVAC technicians and balancing professionals alike, enabling precise airflow control without costly mechanical adjustments.
How Do VFDs Work?
VFDs convert the incoming AC power into DC and then modulate it into a variable voltage and frequency output. This process allows for a smooth change in motor speed and performance, providing more control over fan or pump operation. By adjusting the power supplied to the motor, a VFD can deliver exactly what’s needed for a given HVAC task. This can be used to reduce airflow during off-peak hours or for amping up to full capacity when demand increases.
Key Benefits of Using VFDs in HVAC
- Energy Savings: VFDs are highly efficient, saving significant amounts of energy. The relationship between motor speed and energy consumption is cubic. This means that cutting motor speed by half will actually results in a power savings of 87.5%. This makes VFDs one of the best solutions for reducing energy consumption in HVAC systems.
- Improved System Lifespan: VFDs provide a “soft start,” gradually ramping up motor speed rather than delivering a sudden burst of power. This smooth acceleration reduces wear and tear on motor components, extending the lifespan of the equipment and reducing maintenance needs.
- Enhanced Airflow Control: By adjusting the speed of HVAC fans, VFDs allow technicians to precisely control airflow. Instead of using belts and sheaves to manually adjust fan speed, operators can simply tweak the VFD settings to achieve the desired air output.
- Reduced Maintenance: Eliminating belts and utilizing direct drive fans, through VFDs’ soft start capabilities, can significantly reduce maintenance costs. Since there’s less mechanical wear, VFDs contribute to fewer breakdowns and lower operational costs over time.
- Noise Reduction: Lower motor speeds translate to quieter operation. This is especially beneficial in environments where noise control is important, such as hospitals, schools, or office buildings.
Common Applications of VFDs in HVAC
- Cooling Towers: VFDs control fan speed, adjusting the cooling capacity to match real-time needs, thus saving energy and extending the equipment’s life.
- Chilled Water Systems: In both primary-secondary and variable primary systems, VFDs help balance water flow and optimize cooling efficiency.
- Air Handling Units (AHUs): VFDs manage fan speeds, providing better control over airflow and improving indoor air quality (IAQ).
- Exhaust Systems: VFDs adjust fan speed based on occupancy and air quality sensors, ensuring proper ventilation with minimal energy use.
How to Adjust Airflow with a VFD
One of the biggest advantages of using VFDs in HVAC is their ability to fine-tune airflow without the need for mechanical adjustments. To adjust airflow using a VFD:
- 1. Measure Initial Airflow: Begin by recording the current airflow delivered by the fan.
- 2. Check the VFD Hertz Setting: Find the current Hz setting on the VFD, which will usually be displayed on a small screen.
- 3. Determine Desired Airflow: Figure out how much airflow is needed for the task.
- 4. Apply Frequency Formula:
New Hertz=( Desired Speed (RPM)/Base Speed (RPM))×Rated Frequency (Hz)
Example Calculation:
- Base Speed (RPM): 1800 RPM
- Desired Speed (RPM): 1200 RPM
- Rated Frequency (Hz): 60 Hz
Plug these values into the formula:
(1200/1800) x 60 = 40 Hz
So, to achieve 1200 RPM, you would set the VFD to 40 Hz .
- 5. Adjust the VFD Setting: Once you’ve calculated the new Hz setting, adjust the VFD and verify the new airflow.
- 6. Check Fan Parameters: Ensure that fan amps, static pressure, and airflow are within system design specifications.
The Role of VFDs in Optimizing Indoor Air Quality (IAQ)
In addition to their energy-saving benefits, VFDs play a crucial role in enhancing indoor air quality (IAQ) within HVAC systems. By allowing precise control of airflow, VFDs enable HVAC systems to maintain ideal temperature, humidity, and ventilation levels. This adaptability is particularly important in environments where air quality is a priority, such as hospitals, data centers, or office buildings. VFDs can adjust fan speeds based on real-time sensor feedback. This ensures that CO2 levels, humidity, and particulate matter are kept within optimal ranges.
Conclusion: Why VFDs Are a Must-Have for HVAC Systems
VFDs are indispensable for modern HVAC systems, offering control, efficiency, and energy savings. Whether it’s reducing motor speed for energy savings or fine-tuning airflow, VFDs are the key to creating more cost-effective building environments.
Investing in VFD technology not only saves on energy costs but also improves the reliability and longevity of HVAC equipment. This makes them important for any facility looking to improve performance.
