Modulating Control Valve : Your Expert Guide

Modulating control valves are devices used to regulate the flow of fluids, such as water, air, or steam. An electronic or mechanical actuator controls these valves. This actuator receives a signal from a control system and adjusts the valve’s position to maintain a desired flow rate.

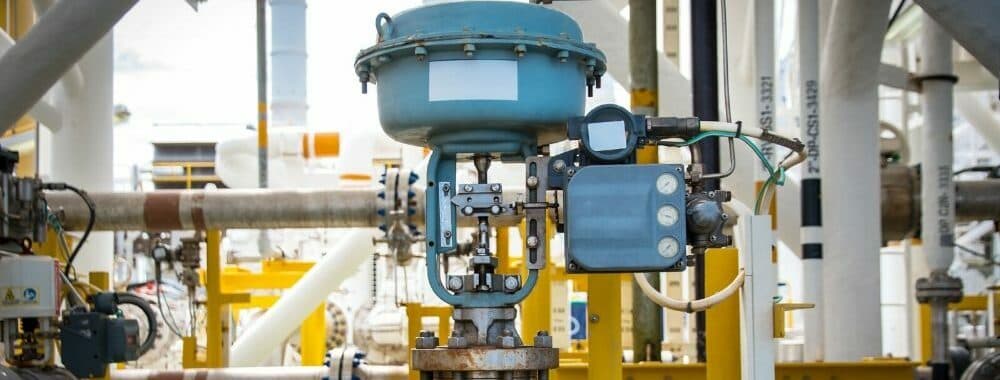

Automatic control valveHeating, ventilation, and air conditioning systems, boilers, and industrial process controls all use modulating control valves. They are particularly useful in systems that need precise flow control, such as in temperature control or pressure regulation.

What Is Modulation

Modulation refers to the ability of the valve to adjust its position in small increments. This is in response to changes in the process variable, such as flow rate, pressure, or temperature. The valve is able to modulate, or fine-tune, the flow of fluid through it to maintain the desired set point. This is opposed to On/Off valves that only have two positions: open and closed. This allows for a more precise control of the process variable, and the ability to maintain a stable set point.

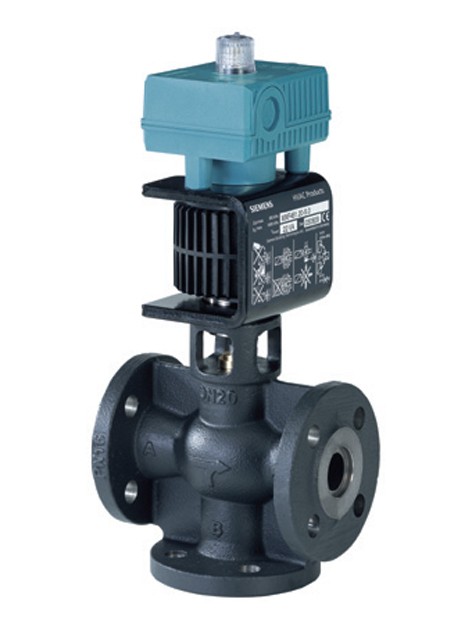

Types Of Modulating Control ValvesSiemens Modulating Control Valve

There are several different types of modulating control valves, each with their own set of features and capabilities. Some of the most common types include:

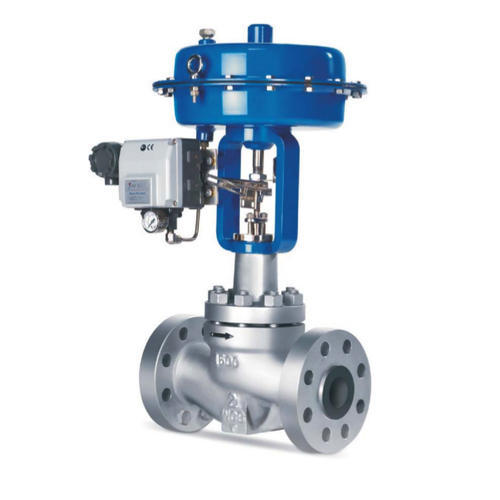

  1. Globe valves: These valves provide precise flow control. They are in systems that require tight shut-offs. They have a cylindrical body and a plug-shaped stem that moves up and down to control the flow.
  2. Diaphragm valves: These valves use a flexible diaphragm to control the flow. They are in systems where the fluid is abrasive or corrosive. This is because the diaphragm provides a barrier between the fluid and the valve’s internal components.
  3. Butterfly valves: These valves feature a circular disc that rotates to control the flow. They are durable, relatively easy to maintain, and can handle large flow rates. They are often used in systems where space is limited.

Consultation with an engineer or expert in the field is recommended to determine the best type of modulating control valve for a particular application.

Modulating Positioners

Modulating Positioners are devices that control the position of a modulating control valve. They receive a control signal from a control system and convert it into a physical movement of the valve stem. This in turn adjusts the flow of the fluid through the valve. The control signal is an electrical or a pneumatic signal.

Modulating Positioners work in conjunction with the control system, flow meter, and control valve to ensure the system maintains the correct flow rate.

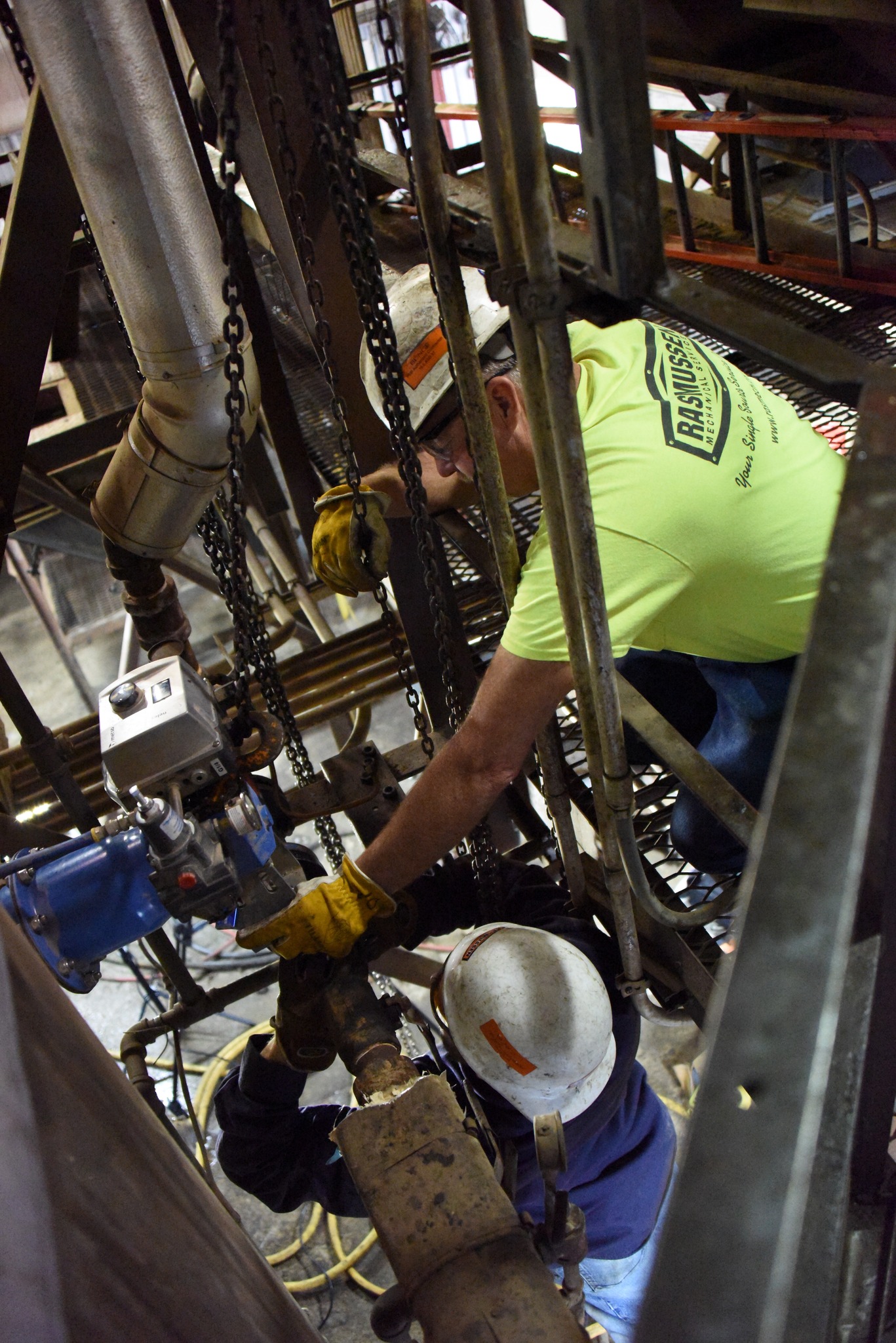

Installing A Modulating Control ValveMaintaining Control Valves

To maintain a modulating control valve, follow these steps:

  1. Inspect the valve and actuator for any visible damage or wear.
  2. Check the valve stem for proper movement and lubricate if necessary.
  3. Inspect the valve seat for wear and replace if necessary.
  4. Check the valve’s output against its input signal to ensure proper operation.
  5. Check the valve’s travel stops and adjust as needed.
  6. Clean the valve and surrounding area to prevent build-up of debris.
  7. Check the valve’s control signal and adjust as needed.
  8. Test the valve for proper operation and repeat calibration if necessary.

It’s important to always follow the manufacturer’s guidelines on maintenance.
