HOW A BOILER FEED WATER SYSTEM AFFECTS BOILER OPERATIONS

It’s important to understand how your boiler feed water system functions, especially when trying to extend the useful life of your equipment. Low-quality boiler feed water contains impurities and gases that can damage the whole system. This will lead to a reduction in efficiency and, even worse, boiler leaks or system leaks. In order to prevent this from happening, you must determine what impurities are in your raw water.

What Are Boiler Feed Water Impurities?

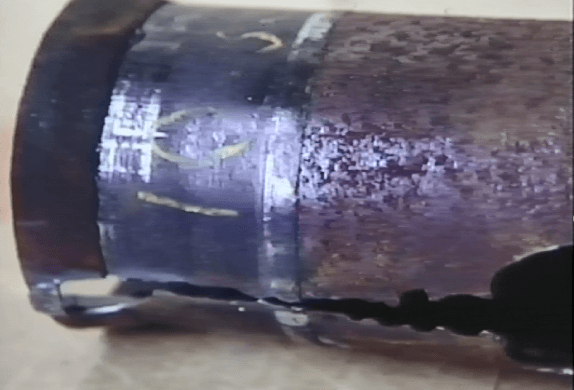

Pipe Burst From OverHeating

Pipe Burst Caused By The Insulating Effects Of Scale

Pure water is neutral in regard to taste, odor, and color. It is a powerful and practical means of transporting energy with its convenient boiling point and steam generation. But this type of water is expensive to generate. Raw water from a well or municipality contains impurities such as suspended solids, dissolved solids, and dissolved gases. There are many specific elements that affect the water within each category.

These vary depending on the source from which the water was collected. Water is a universal solvent and therefore has a tendency towards inconveniently picking up minerals that will interfere with boiler efficiency. Feed water can contain the aforementioned impurities as well as industrial wastes, sediment, and microorganisms. In the Midwest, we most commonly find calcium, magnesium, and silica. All water absorbs gas from the surrounding atmosphere and should be deaerated, or in some cases, run through a good hot water return tank.

Why A Boiler Feed Water System Matters

Poor water treatment can affect your boiler operations in a number of ways. Let’s take them one at a time.

dissolved gas in boiler feedwater

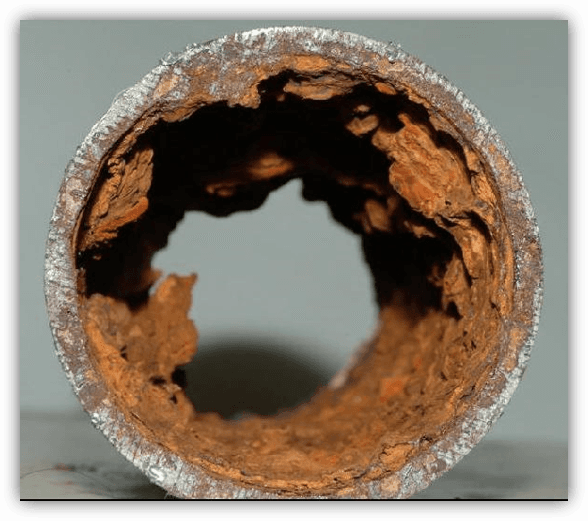

Corrosion caused by dissolved gases in boiler feed water.

DISSOLVED GASES

Oxygen and CO2 even in trace amounts as low as 5 ppm (parts per million) will cause major corrosion damage over time. Dissolved oxygen will react with carbon steel throughout the feed water piping, economizers, and boiler, causing oxygen pitting and eventually leaks. Take every opportunity for internal inspection of your boiler, economizer, and piping to look for internal corrosion of this type.

Dissolved CO2 can come from poorly deaerated water or as a byproduct of chemical reactions taking place inside your boiler. When this CO2 travels out of the boiler with the steam, it can make the condensate acidic. This acid condensate will corrode away your steam pipe while also adding iron to your boiler water (a very not good thing).

[A boiler feed water system is just one component of your boiler system. Download our Boiler Maintenance Checklists and Logs to ensure feed water doesn’t alter your boiler’s performance.]

Dissolved Solids

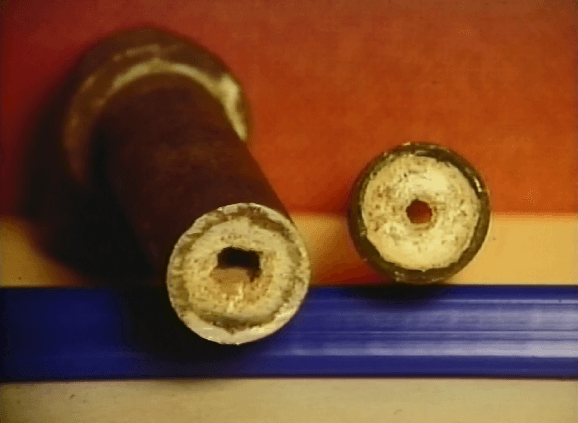

Picture of Pipes With Scale Build-up

Scale caused by calcium and magnesium in the water.

Dissolved solids such as calcium, magnesium, iron, and silica in feedwater can quickly damage a boiler beyond repair. These dissolved solids come out of solution as the temperature of the water increases, forming a scale on nearby surfaces. Sometimes these scales form in feedwater pipe and economizers. In many cases, this scale is first seen in the boiler, where the heat transfer occurs. This scale prevents boiler water from cooling metal heat-absorbing surfaces, leading first to a loss of efficiency. This loss of efficiency can be noted by a steadily increasing boiler outlet temperature in the boiler operator’s logbook. As the problem worsens, the boiler will have a number of issues with uneven thermal growth, such as tube roll leaks. Finally, when the scale is so thick that it prevents the boiler water from cooling the heat transfer surfaces effectively, the boiler tubes may completely fail.

Foaming Carry-Over

Foaming carry-over is primarily a function of normal boiler impurities becoming too concentrated or over-treatment with chemicals. It can also be caused by an accidental introduction of organic matter (grease or oil) into the boiler feed water or condensate return. The foam inside the boiler is easily forced out of the boiler steam outlet and can cause major damage. Water hammer in a steam line, erosion in steam piping, and boiler low water events are damaging to your system.

What Needs To Be Done About It?

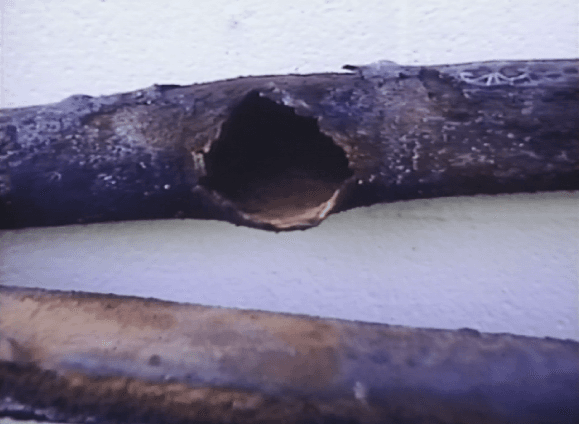

Corrosion caused by poor feed water on a steel pipe.

Corrosion caused by poor feed water.

The good news is, that all these issues can be prevented with a good boiler feed water system. Raw water should be pre-treated, deaerated, and chemically treated to protect your boiler room equipment and the steam system in general. The most effective and lowest cost water treatment program goes in that order. Remove as much of the gas and impurities as possible mechanically, then treat the remaining traces with a good chemical treatment program.

HOW TO PREVENT DISSOLVED GASES ISSUES

Dissolved gases are mostly driven out of feed water in the Deaerator or hot water tank. The proper function of these systems is essential to preventing corrosion both in the boiler room and in the steam system. Careful attention is required to ensure that gases can be safely removed from the boiler water prior to feeding the boiler. Good practice would be to record the feed water temperature in your boiler logbook during every operator round.

Note: A high function boiler feed water system consists of more than a dearorator or hot water tank. A good chemical treatment program is also required to remove the remaining trace amounts of dissolved gas.

  • If your feed water temperature drops (below 190 F for hot water tanks or below 225 F for deaerators), contact a qualified service company right away. You want to diagnose the problem before it can damage your boiler and steam system.

HOW TO PREVENT DISSOLVED SOLIDS ISSUES

Dissolved solids, depending on the nature of the impurity, are removed in a variety of ways. In the Midwest, typical water treatment requires a water softener at a minimum to remove the Calcium and magnesium. However, many systems also include RO Systems (Reverse Osmosis) to remove calcium, Magnesium, and Silica in addition to the softener. A good water treatment company can measure the impurities in your raw water, as well as in your feed water. They can then make recommendations for improving your water treatment as well as provide you with chemical treatment recommendations. Good practice would be to record water conductivity in your boiler logbook during every operator round. Be sure to include makeup water conductivity, feed water conductivity, and boiler water conductivity.

Boiler Tube and Caustic Embrittlement

Embrittlement of a boiler tube causing a crack due to poor water treatment.

  • When your makeup water conductivity is above the recommendation of your water treatment company, youneed to begin troubleshooting your raw water treatment. If the problems persist, contact a qualified service company to troubleshoot the system.
  • When boiler water conductivity is above the recommendation of your water treatment company, you are likely forming a scale on heat transfer surfaces! Perform a good blowdown to get conductivity within range, and adjust your continuous blowdown accordingly to prevent future upsets. Be sure to call your water chemical company for “best practice” advice on adjusting blowdown.

HOW TO PREVENT FOAMING CARRY-OVER

If you suspect carry-over or foaming, immediately verify your boiler water conductivity is within range. If it is, call your water treatment company to help identify the cause of the foaming. They can perform a number of tests on the feed water, boiler water, and condensate to confirm a carry-over situation. In some cases, you need to bring the boiler offline and have a thorough cleaning done by a qualified service company. This will allow them to clean the oil, grease or other product contamination effectively. In other cases, the foaming can be addressed with a simple water additive.

When you need to generate steam, it can be frustrating to have a simple process impeded by outside variables. These impurities can clog strainers and valves, cause pipe or tube failures or form sludge build-up and corrosion within the boiler system. Each boiler system has its own limit of Total Dissolved Solids (TDS) in the feed water and the boiler. This limit should be set with the help of your water chemistry supplier. You will need to take into consideration your water, your plant, and the chemical program in use. Use the chart below  as a reference for some general guidelines. However, your water chemistry supplier will help you set better guidelines based on the chemistry you are using and the impurities in your water.

ASME guidelines chart

In summary, pre-treatment of boiler feed water can make all the difference when trying to prevent costly shutdowns and extensive boiler maintenance. Starting with good water keeps your system flowing efficiently and prevents system damage. Removing impurities is a necessary step for any boiler process, but it is only one part of the process. Rasmussen Mechanical Services works with your boiler operators and your water treatment company to keep your system running efficiently and reliably.

If you have any questions about boiler feed water systems or want a second opinion, drop us a line. The Rasmussen Mechanical Services Team is at your service. Save your boiler and save yourself the headache of future complications today.
