Compressed Air Dryer : An All Inclusive Guide

Air compressors are an essential tool in many industries, including manufacturing, construction, and automotive repair. However, these machines also produce a significant amount of moisture as a byproduct of their operation. This moisture can cause rust and corrosion to form on the internal components of the compressor, leading to costly repairs and downtime. To prevent this, many compressors are equipped with compressed air dryers, which remove the moisture from the air before it is used.

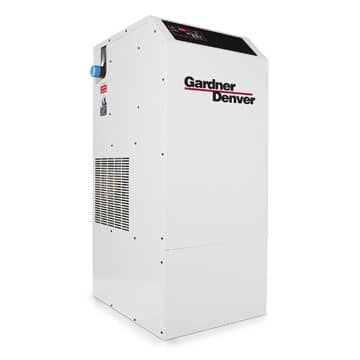

Refrigerated Air Dryer

Refrigerated Air Dryer

There are several types of air dryers available, each with their own advantages and disadvantages. One of the most common types is the refrigerated air dryer. These dryers work by cooling the compressed air, which causes the moisture to condense and be removed. They are particularly effective in removing water vapor, but can be less effective at removing other contaminants such as oil and dirt.

Another type of air dryer is the desiccant air dryer. These dryers use a desiccant material, such as silica gel, to adsorb the moisture from the compressed air. Desiccant dryers are highly effective at removing moisture, even at very low temperatures, but they do require regular replacement of the desiccant material.

Membrane air dryers are also a popular option. These dryers use a semi-permeable membrane to separate the moisture from the compressed air. They are more energy-efficient than refrigerated or desiccant dryers, but may require more maintenance.

Choosing The Right Compressed Air Dryer

When choosing an air dryer for your compressor, it is important to consider the specific needs of your application. For example, if you are using the compressor in a cold environment, a desiccant dryer may be the best option. On the other hand, if energy efficiency is a concern, a membrane dryer may be a better choice.

Considerations Before Buying

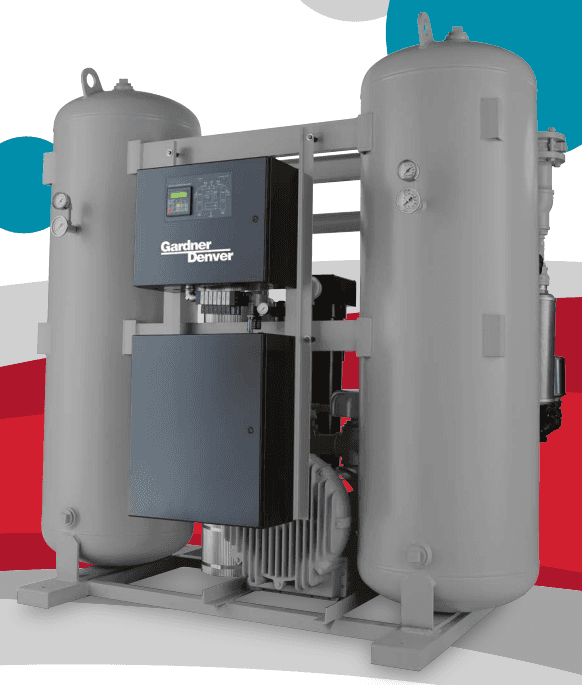

DESICCANT Compressed air dryer

Desiccant Air Dryer

You should always consult a compressed air expert before purchasing a compressor air dryer. Some considerations you need to think through before purchasing include:

  • Dew Point: Dew point is the temperature at which moisture condenses from the air. It is important to choose a compressed air dryer that can achieve a dew point low enough for your specific application.
  • Flow Rate: The flow rate of your compressed air dryer should match the flow rate of your compressor. If the dryer’s flow rate is too low, it will not be able to keep up with the moisture produced by the compressor.
  • Pressure: The compressed air dryer should be able to handle the pressure of your compressor. If the dryer is not rated for the same pressure as your compressor, it will not be able to effectively remove moisture.
  • Energy Efficiency: Compressed air dryers can consume a significant amount of energy, so it’s important to choose one that is energy-efficient.
  • Maintenance: Consider the maintenance required for the compressed air dryer. Some types of dryers, such as desiccant dryers, require more frequent maintenance than others.
  • Temperature: The compressed air dryer should be able to operate at the temperature range of your application.
  • Contaminants: It’s important to consider the types of contaminants that may be present in your compressed air. Based on your system, be sure to choose a dryer that can effectively remove them.
  • Cost: Compressed air dryers can be expensive, so it’s important to consider the cost and make sure it fits within your budget.
  • Space: Consider the space you have available for the dryer. Some dryers are larger than others and may require more room.
  • Warranty: check the warranty offered by the manufacturer, this will ensure you have a reliable and durable product.

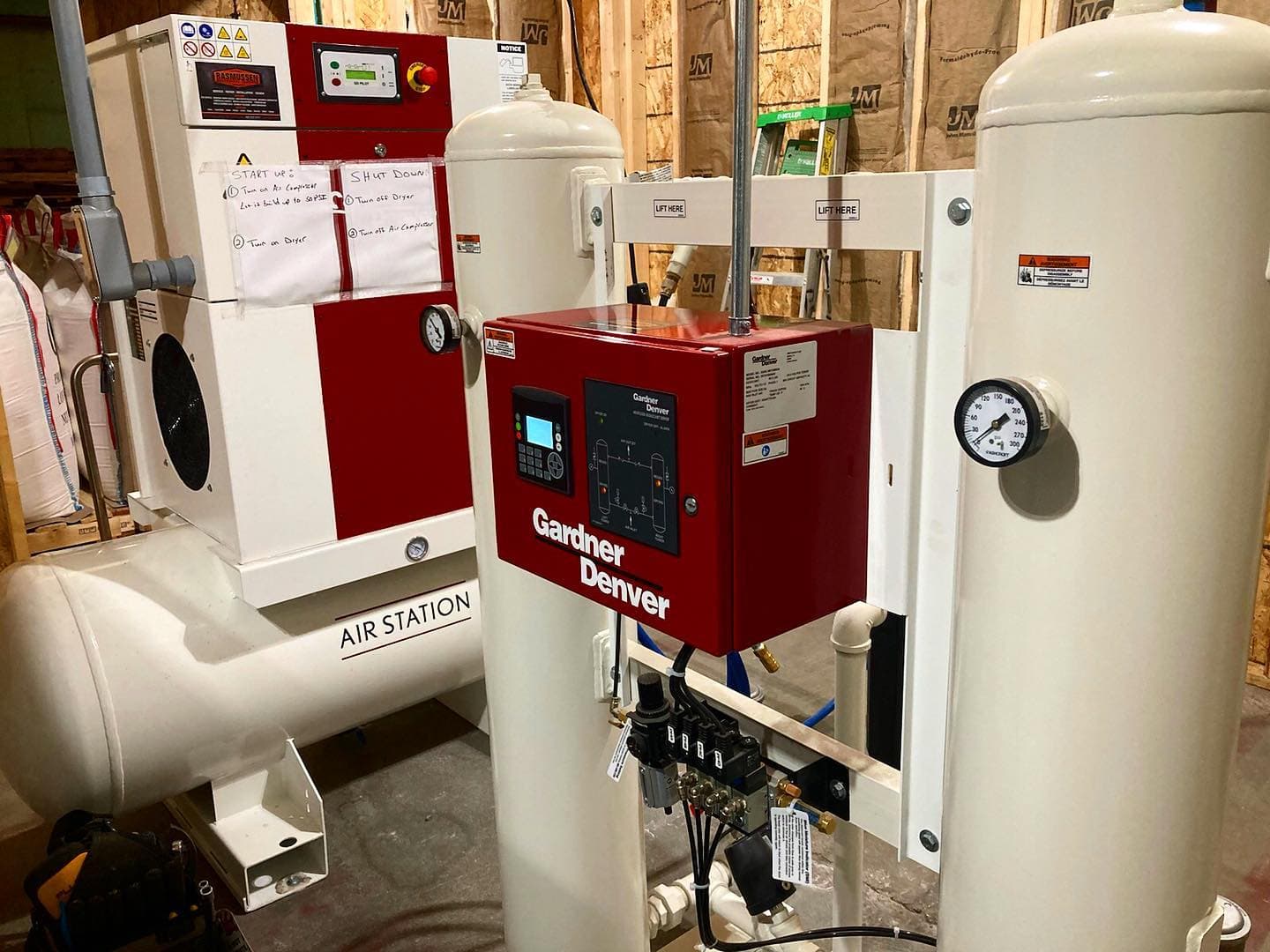

Maintenance ExpectationsService Technician looking over a compressed air system

The maintenance requirements of an air dryer can vary depending on the type of dryer. However, some common maintenance tasks include:

  1. Monitoring the air filter: This should be done regularly. Ensure that it is not clogged with dirt or debris, which can reduce the efficiency of the dryer.
  2. Replacing desiccant: Desiccant dryers require regular replacement of the desiccant material.
  3. Draining the moisture: Compressed air dryers should be drained to remove any accumulated moisture, this should be done regularly.
  4. Checking for leaks: Check the dryer for any leaks, and fix them promptly to prevent any loss of efficiency.
  5. Checking the controls: Regularly check the controls to ensure that the dryer is operating correctly.
  6. Conducting regular inspections: Inspect the dryer for any signs of wear or damage, and address any issues promptly to prevent further damage.
  7. Check the compressor connection: Make sure that the dryer is properly connected to the compressor and that there are no leaks.

Quick Summary

Compressed air dryers are used to remove moisture from the air produced by compressors, preventing rust and corrosion on internal components. There are several types of compressed air dryers available, including refrigerated, desiccant, and membrane dryers. Each type has its own advantages and disadvantages, and the best choice depends on the specific needs of the application. When buying a compressed air dryer, considerations include dew point, flow rate, pressure, energy efficiency, maintenance, temperature, contaminants, cost, space and warranty. It’s important to choose a dryer that can effectively remove moisture, while also fitting within your budget and space limitations.
