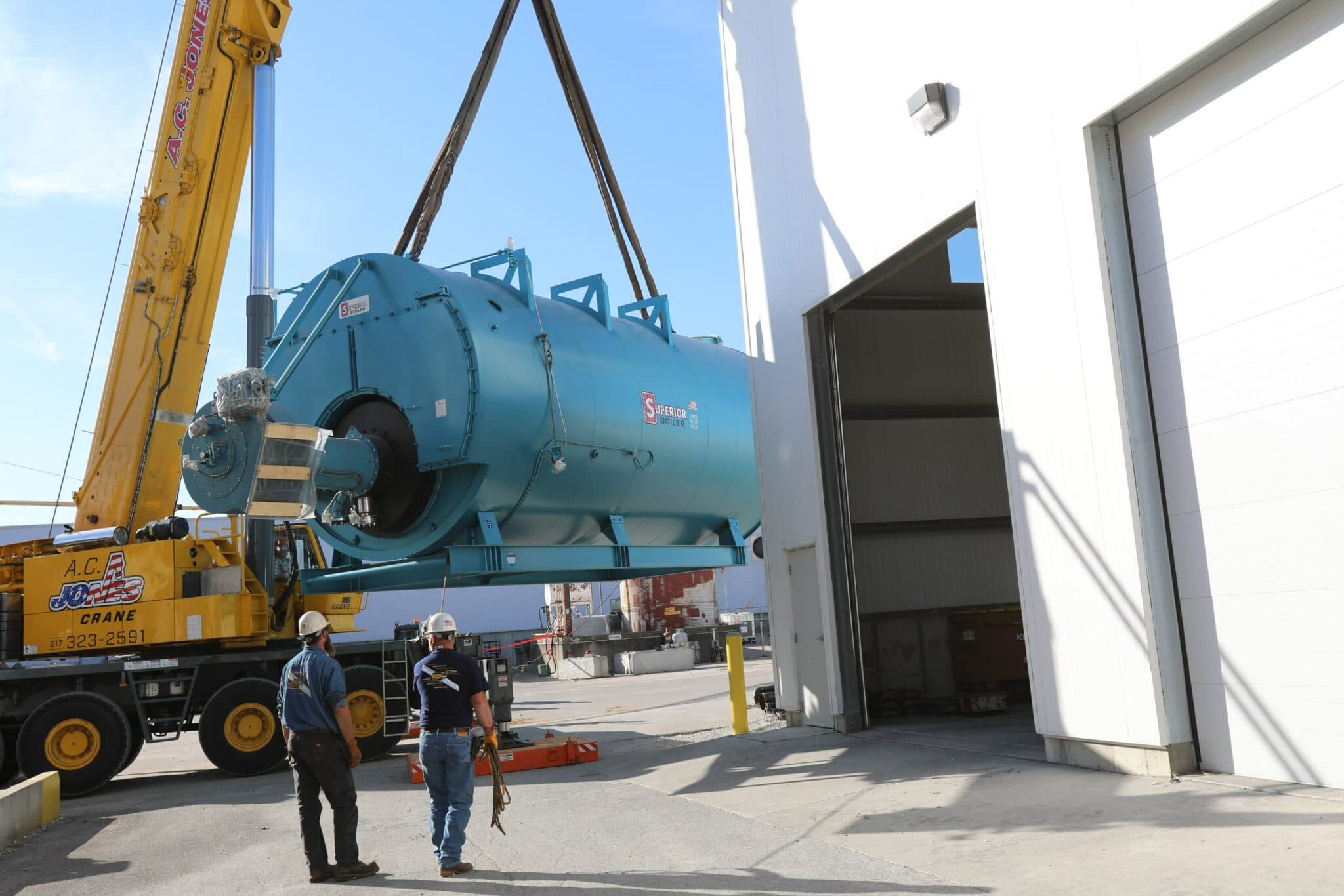

Firetube boilers are a popular type of boiler in industrial and commercial settings for generating steam or hot water. These boilers are known for their simple design and ease of operation, making them a reliable choice for a wide range of applications.
Firetube Design
The basic design of a firetube boiler consists of a steel container, known as the drum, which holds water. Inside the drum are one or more tubes, through which hot gases from a fire pass. The heat from the gases is transferred to the water in the drum through the walls of the tubes, creating steam or hot water.
One of the key components of a firetube boiler is the firebox, which houses the fire. The firebox is typically made of steel and lined with firebrick to protect the steel from the high temperatures of the fire. Fuel, such as natural gas or oil, is delivered to the firebox and burned to create the hot gases that heat the tubes.
Watertube vs Firetube
The main difference between a firetube boiler and a watertube boiler is the direction in which the heat and combustion gases flow. In a firetube boiler, the heat and combustion gases travel inside tubes that are surrounded by water in a large cylindrical drum. In a watertube boiler, the water flows inside tubes that are surrounded by heat and combustion gases in a smaller, pressurized chamber.
Another key difference is the size, a firetube boiler typically has a larger overall footprint and is not suitable for pressures above 350 psig. Watertube boilers are smaller and can handle higher pressures and temperatures. Watertube boilers are more efficient than firetube boilers, as they are able to transfer heat to the water more effectively. They are often used in power generation and industrial applications.
Types Of Firetube Boilers
There are several different types of firetube boilers, including the scotch boiler, the vertical boiler, and the horizontal return tubular (HRT) boiler.
- The scotch boiler is a firetube boiler that consists of a large cylindrical shell. Hot gases from the burner pass through a number of tubes inside of this shell.
- The vertical boiler is a firetube boiler that has a vertical orientation and a smaller overall footprint.
- The horizontal return tubular (HRT) boiler is a firetube boiler that has a horizontal orientation and a long, cylindrical shape. It is typically used in industrial and power generation applications.
All these types of firetube boilers share some common features: the combustion gases pass through tubes surrounded by water in a shell.
Regular Maintenance
However, as with any mechanical equipment, regular maintenance is necessary to ensure safe and efficient operation of a firetube boiler. Some of the key maintenance tasks that should be performed on a regular basis include:
- Water level: The water level in the drum should be checked regularly to ensure that it is at the correct level. If the water level is too low, it can cause damage to the tubes. A water level that is too high can lead to carryover and potential failure of the boiler system.
- Burner maintenance: The burner should be checked and cleaned on a regular basis to ensure that it is operating efficiently. This includes checking for proper fuel and air mixture, as well as cleaning any clogged fuel nozzles.
- Tube cleaning: The tubes should be cleaned on a regular basis to remove any buildup of soot or other materials. This can be done using a tube cleaning brush or a high-pressure water jet.
- Safety devices: Such as the pressure relief valve and low-water cutoff, should be checked regularly to ensure that they are functioning properly.
- Inspection: A annual inspection by authorized inspector is required to ensure that the boiler is in safe operating condition and meets ASME standards.
It is also important to keep an eye out for potential issues and address them as soon as they are identified. Some signs that a firetube boiler may need repairs or maintenance include decreased efficiency, strange noises, leaks, and soot or discoloration.
Firetube Boilers Summary
In summary, firetube boilers are a popular and reliable choice for generating steam or hot water. Their simple design and ease of operation make them well-suited for a wide range of industrial and commercial applications. Regular maintenance is necessary to ensure safe and efficient operation. It is important to address any potential issues as soon as they are identified. With regular maintenance and inspections, these boilers can provide reliable service for many.
