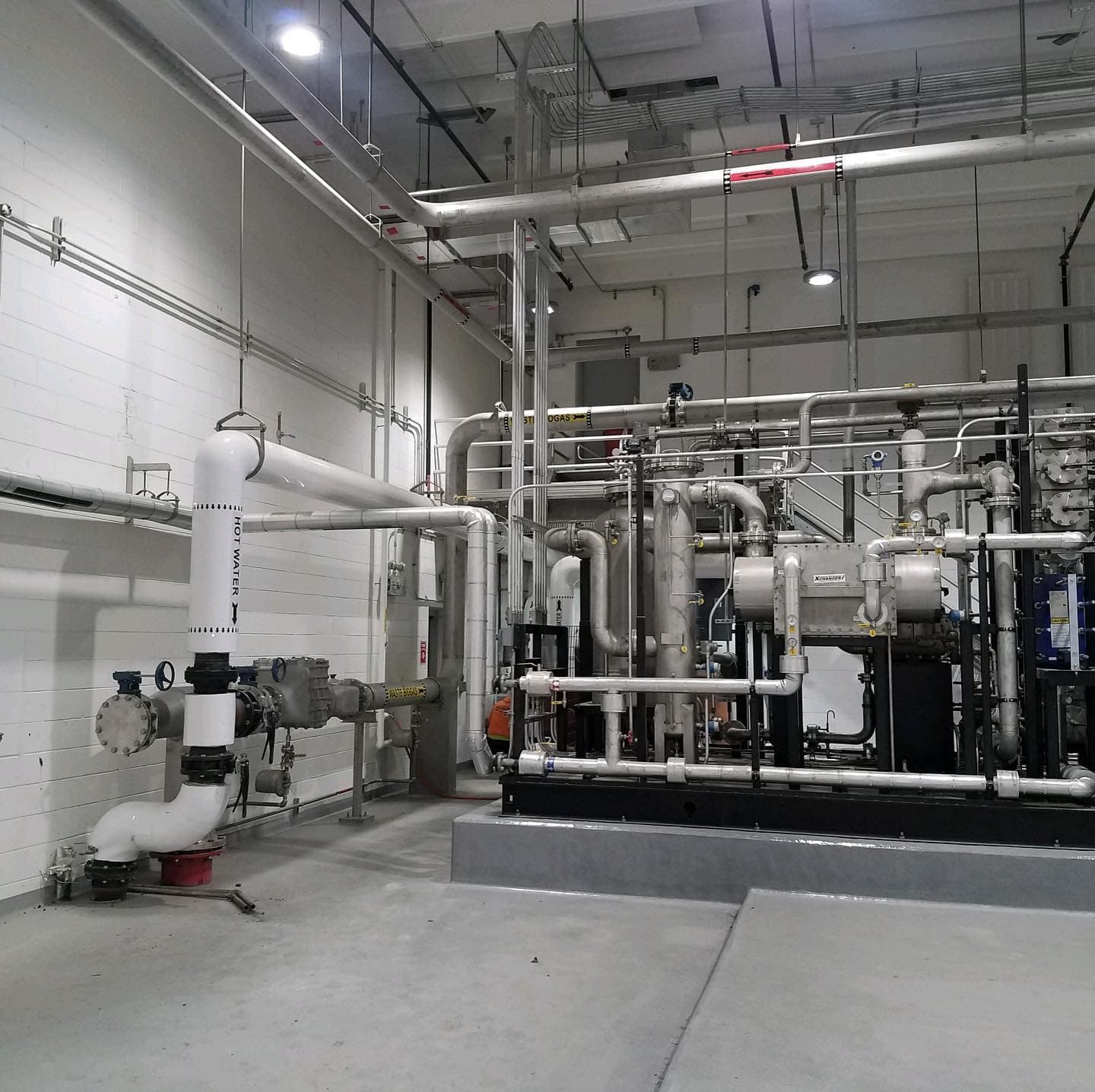

Process piping refers to the installation of pipes and related components that are used to transport fluids, gases, or other materials within a facility. It is an essential component of many manufacturing and industrial processes, allowing for the movement of materials through a system.
Without proper piping systems, it would be difficult or impossible to transport materials from one part of a facility to another. As such, this form of piping is an integral part of many manufacturing processes, from chemical processing to energy generation.
In this article, we will explore the different types of process piping, and answer some common questions.
Piping Components
Their are a number of different components that make up process piping. The specific components will depend on the type of fluid and the requirements of the system. Some common components of these piping systems include:
Pipes: The primary component of process piping systems, transport fluids or gases from one location to another.- Fittings: Commonly connect pipes together or connect pipes to other components in the system, such as valves or pumps. Common types of fittings include elbows, tees, and reducers. (see more below)
- Valves: Control the flow of fluids or gases through the piping system. They can be used to stop or start the flow of materials, regulate the pressure, or control the direction of flow.
- Pumps: Move fluids through the piping system when pressure is needed to overcome friction or other resistance in the system. They often move liquids from one part of a system to another.
- Heat exchangers: Transfer heat between fluids in the piping system. They are often used in heating and cooling systems.
- Insulation: Reduce heat loss or gain, as well as to protect workers from hot or cold pipes.
- Supports and anchors: Hold the piping system in place. They also prevent movement or vibration that could damage the system or cause leaks.
Pipes:Diving Into The Different Types Of Fittings
There are various types of pipe fittings used in piping systems. These fittings are used to connect pipes of different sizes and shapes or to change the direction of fluid flow. They also can provide for other functions such as control, isolation, and regulation. It is important to note that understanding the appropriate fittings to use in high pressure systems should always be left to a professional. Here are some of the most common types of pipe fittings used in process piping:
-
Elbows: Change the direction of fluid flow in a piping system. They are available in different degrees of angles such as 45 degrees, 90 degrees, and 180 degrees.
- Tees: Connect three pipes together or provide a branch connection in a piping system. They are available in equal and reducing tees.
- Couplings: Connect two pipes together and provide a tight seal between them. They are available in different materials such as steel, copper, and plastic.
- Reducers: Connect two pipes of different sizes together. They are available in concentric and eccentric configurations.
- Flanges: Connect two pipes together or connect a pipe to a valve or other equipment. They are available in different materials such as steel, cast iron, and plastic.
- Valves: Control the flow of fluids in a piping system. They can be manual or automated, and they come in different types such as gate, globe, ball, butterfly, and needle valves.
- Unions: Join two pipes together and provide for easy disassembly of the piping system. They consist of three parts – a nut, a male end, and a female end.
- Adapters: Connect two pipes of different materials or types. They are available in different configurations, such as male to female, female to male, and male to male.
- Caps and plugs: Seal the end of a pipe or fitting to prevent the escape of fluid. They are available in different materials such as steel, plastic, and rubber.
Where is process piping most commonly used?
Chemical processing, power generation, HVAC systems, pharmaceuticals, food and beverage production, and oil and gas production all use this type of piping. In these industries, piping is essential for the safe and efficient transport of fluids, gases, and other materials. It plays a critical role in ensuring the reliability and performance of manufacturing and production processes.
What is the difference between process piping and plumbing?
What is the difference between process piping and plumbing?While both process piping and plumbing involve the installation of pipes, there are significant differences between the two. Plumbing systems transport water and other fluids within a building for domestic purposes such as drinking, bathing, and washing. These systems typically use pipes made of materials such as PVC, copper and brass. They are also regulated by building codes and standards that ensure safe and sanitary conditions.
Process piping, on the other hand, is used to transport fluids, gases, and other materials for industrial and commercial applications. These systems use pipes made of materials such as carbon steel, stainless steel, and copper-nickel alloys. They are also designed to withstand high pressures, temperatures, and corrosive environments. This type of piping is regulated by codes and standards such as ASME B31.3, which ensure the safe and reliable operation of piping systems.
What is HVAC process piping?
HVAC process piping refers to the installation of piping systems for heating, ventilation, and air conditioning (HVAC) applications. These systems transport air and water for heating and cooling purposes. They may also include the use of refrigerants or other fluids for cooling. HVAC piping systems may use materials such as copper, steel, plastic, and various types of alloys. They are designed to withstand the high pressures and temperatures associated with HVAC applications.
What is the difference between process piping and power piping?
Power piping is a specific type of process piping that is used in power generation facilities such as power plants. These piping systems are designed to transport fluids at high temperatures and pressures, and must meet stringent safety and reliability standards. Power piping systems are regulated by codes and standards such as ASME B31.1, which specify requirements for materials, design, fabrication, inspection, testing, and operation.
Different Types of Process Piping Insulation
Piping insulation is a crucial component of any piping systems. Here are some of the most common types of piping insulation used in piping systems:
Fiberglass Insulation
Fiberglass insulation is one of the most common types of insulation used in process piping. It is made of glass fibers that are spun and woven into a blanket or batt form. It is available in different thicknesses and densities, and it can be covered with different materials such as aluminum foil, PVC, or reinforced paper.
Mineral Wool Insulation
Mineral wool insulation is made of rock or slag fibers that are spun into a blanket or batt form. It is available in different densities and thicknesses, and it can be covered with different materials such as aluminum foil, PVC, or reinforced paper.
Foam Insulation
Foam insulation is made of closed-cell or open-cell foam that is sprayed or applied in place. It is available in different densities and thicknesses, and it can be covered with different materials such as aluminum foil, PVC, or reinforced paper.
Calcium Silicate Insulation
Calcium silicate insulation is made of calcium silicate that is formed into a rigid board or pipe covering. It is available in different densities and thicknesses, and it is typically used in high-temperature applications.
Aerogel Insulation
Aerogel insulation is made of a gel-like material that is dried to form a solid. It is available in different forms, such as blankets, panels, and powder, and it is highly effective in preventing heat loss or gain.
Reflective Insulation
Reflective insulation is made of a layer of aluminum foil or other reflective material that is attached to a layer of insulation. It reflects radiant heat and is typically used in applications where heat gain is a concern.
Overall, the selection of piping insulation used in a piping system will depend on the specific requirements of the system. This may include the temperature of the fluid, the environment in which the piping system is located, and the desired level of energy efficiency.
Conclusion
In conclusion, process piping is a critical component of many manufacturing and industrial processes. It allows for the safe and efficient movement of materials through a system. It is an intricate system that requires careful consideration and expertise in design, installation, and maintenance. The various components of piping systems, including pipes, fittings, valves, pumps, heat exchangers, insulation, supports, and anchors. All play a vital role in ensuring the reliable operation of the piping system.
