Steam Trap Maintenance (Everything You Need To Know)

In many facilities across the US, failing steam traps go unmaintained, resulting in thousands of dollars in energy costs. When steam trap maintenance is neglected, traps begin to fail. This can cost your facility hundreds, even thousands of dollars in energy loss.

The steam trap is an integral part of any steam system, proper upkeep is a must. Below, we’ve compiled some tips to ensure you can detect failures before it’s too late and improve the efficiency of your steam system.

What are Steam Traps?

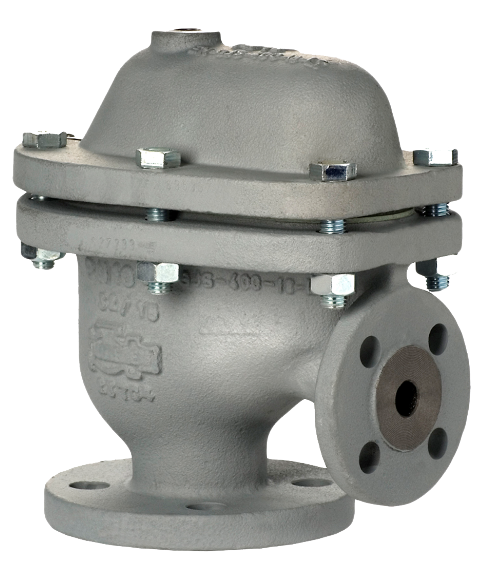

Mankenberg Automatic Bleeding Valve Industry Steam Trap

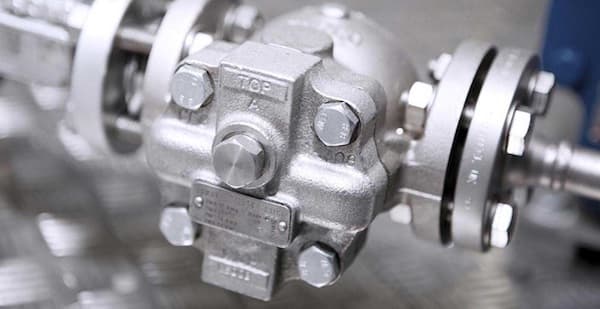

A steam trap is a mechanism that filters out condensate (i.e., condensed steam) and non-condensable gases. It does this without removing the live steam from the system.

Depending on the steam system, the quantity of condensate steam the trap can carry varies. The trap may discharge condensate as soon as the condensed steam forms, or it may hinder below the steam temperature.

When picking the right trap for your system, you want to ensure it can carry out its given functions, no matter the condition. If you aren’t sure what the requirements are, try contrasting operating pressures, heat load, or the condensate pressure. Also, steam traps contain different extremes of temperature or water hammer. No matter the condition(s), correct the steam trap selection to improve your system’s efficiency.

Note: Your steam traps must be resistant to corrosion or dirt.

Types of Steam Traps

There are three significant types of steam traps that are classified by the International Standard ISO 6704:1982.

1. Thermostatic (operate by changes in fluid temperature)

A thermostatic trap responds to changes in temperature. Therefore, they distinguish very well between steam and cooler non-condensable gases. Its pressure greatly determines the temperature of saturated steam. The steam in the space gives up its heat and produces condensate at steam temperature. To prevent further heat loss, the condensate’s temperature will drop. The thermostatic trap will pass condensate when it’s at a lower temperature. As the steam travels to the trap, the temperature will increase, and the trap will close.

2. Mechanical (operated by changes in fluid density).

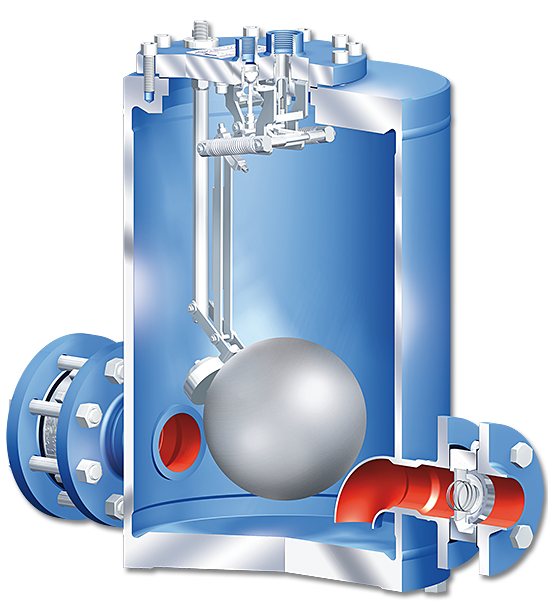

Mechanical traps tend to work by sensing the difference between steam and condensate. They include elements such as “ball float traps” and “inverted bucket traps.” In “ball float traps,” the ball will rise in the occurrence of condensate. Next, the valve will open and transfer the denser condensate. In the “inverted bucket trap,” the inverted bucket floats once steam reaches the trap. Once it reaches the trap, the steam rises, shutting the valve.

3. Thermodynamic (operated by changes in fluid dynamics).

Thermodynamic traps partly rely on the formation of the flash steam from the condensate. These traps can’t distinguish between steam and or other non-condensable gases. Steam traps associated with the thermodynamic trap include the following: disc, impulse, and labyrinth traps.

Close up of a steam trap in a facility with rust on it.

Testing Steam Traps

Like all mechanical devices, steam traps are subject to wear and tear. To keep them performing efficiently, they require maintenance to meet manufacturer specifications. Common issues you want to prevent include steam leakage or blocked condensate discharge (i.e., cold traps).

Identifying faulty traps within the system is important. Faulty traps can lead to continuous problems. If found, replace faulty traps immediately.

Routinely monitoring your steam traps should be part of your steam trap maintenance plan. This will improve your process efficiencies as well as prevent additional damage to your piping. Some diagnosis procedures include:

  • Listening devices
  • Optical sight glasses
  • Temperature monitoring
  • Ultrasonic techniques

Note: These diagnostic procedures can become inaccurate as your system’s conditions change.

If you are having trouble with the procedures above, you can try a fool-proof steam trap testing device method. This consists of a sensor, fitted inside the steam trap. It detects the physical state of the medium at that point by conductivity. You can monitor the steam trap locally, remotely, manually, or automatically. Also, monitoring can detect immediate failure, thus minimizing waste and maximizing your investment.

By implementing these procedures, you can gain an idea of where the trap’s flow, noise level, and condensate load are at. Always ensure that a professional is overseeing your processes to guarantee your system is performing at its best.

Routine Steam Trap Maintenance

With today’s energy costs and demand for production reliability, it’s imperative to execute a steam trap maintenance program. With a maintenance plan in place, teams can successfully identify defective steam valves, traps, strainer failures, and blowdown valve failures.

Two of the most common causes of steam trap failure are oversizing and dirt within the system. Oversizing can cause traps to overwork while dirt buildup can cause plugging or prevent a valve from closing. To help you better assess steam trap failure, here are some general indications to look out for:

  • An abnormally warm boiler roomJourneyman Inspecting A Boiler
  • Condensate receiving venting steam
  • The condensate pump water seal is failing prematurely
  • Over-heating or under-heating in conditioned space
  • The boiler operating pressure is challenging to maintain
  • Vacuum in the return lines is difficult to keep up
  • There’s water hammer in steam and condensate lines
  • Steam buildup in condensate return lines
  • The energy bill is higher than normal
  • Inlet and outlet lines are the same temperatures

If you suspect your steam traps might be failing, you should test them. You can complete this by:

  • Installing a test valve downstream
  • Use sound equipment to listen to the action of the trap
  • Measure the temperature difference on the inlet and outlet of the trap

If you are conducting steam trap maintenance, it is important to remember that not all maintenance procedures will be the same. It will often depend on the type of trap and its application. For example, the balanced pressure steam trap has an element designed for easy replacement. You’ll need to change these regularly (i.e., once every three years). By replacing them consistently, this will reduce the need for trap checking and will ensure a trouble-free system with minimal losses through defective traps.

Keep your boilers running with our free boiler logs and maintenance checklist.Replacing Internal Parts

Have you ever thought about changing out the internal parts of a steam trap to repair them? Depending on the trap, this can sometimes be cheaper than replacing the whole unit.

If you are restoring a thermostatic trap, you can generally change them by removing the screwed-in seat.

For thermodynamic traps, if the trap becomes damaged, it can be easily replaced. If you see that there’s damage to the seating faces, rectify them by lapping them gently.

Replacing the seats of thermodynamic traps will be more complicated to perform. To perform this, make two separate gasketed joints, or a single gasket may have to operate with two or more steam or condensate passages. You can identify the weakest point of the joints between the trap and body seat, especially if they’ve been allowed to blow steam.

When replacing parts, you will want to always check with the manufacturer regarding the proper technique for any maintenance work required on steam traps. Also, it’s essential to keep in mind that the correct procedure for maintenance work on steam traps will depend on the site conditions. For example, a small float trap is designed so that the cover, along with the internal parts, can be taken to the workshop. This allows you to leave the main body attached to the pipe. This procedure is often preferable to replacing the seats of the inaccessible trap, which melt into the pipework under dirty conditions. A professional and well-respected manufacturer will supply you with appropriate documents, advice, and spare parts.

Replacing The Traps

In most cases, it will be easier to replace traps than to repair them. You want to ensure you can change steam traps easily during routine maintenance. One solution to consider is flanged connections, even though a flanged trap is more expensive than the screwed trap.

Steam traps consist of a swivel connector that allows rapid, easy removal and replacement of any sealed trap. A swivel connector consists of a pipeline unit or connector that remains in the pipeline during maintenance of the trap. Each trap can be replaced by operating two bolts. The traps match to the same connector that’s providing the flexibility and rationalism of spares.

Steam is the primary heat source for many processing plants and large commercial buildings, which makes steam trap maintenance that much more important. If maintenance isn’t performed, then reliability issues are sure to follow. After all, proper maintenance can create impactful production and earnings benefits, as well as significant energy savings.
