Steam traps play a critical role in the efficiency and safety of steam systems. Steam traps that are not functioning properly can lead to significant issues such as steam loss, ineffective heating, and water hammer. In this article, we’ll cover what steam traps do, common problems associated with them, and the importance of regular steam trap testing.
What Does a Steam Trap Do?
At its core, a steam trap’s primary function is to retain steam within the system while discharging condensate and air. Essentially, it acts as a barrier, separating the steam side of your system from the condensate return side. Removing water and air from the system while leaving the steam.
How Does Water Get Into The Steam System?
So how does water get into a steam system anyway? As steam travels through the piping, heat loss occurs due to radiation. This causes some of the steam to condense back into water. Of course water is also formed at points of use, where steam which turns into water after it gives up its heat. Additionally, issues like carryover from total dissolved solids being to high can introduce more water into the system.
Drip Traps vs. Process Traps
Drip Traps are installed throughout steam mains, particularly at low points, elevation changes, and ahead of control valves. As steam loses heat and condenses into water, drip traps are crucial for removing this condensate from the system. Without drip traps, condensate can accumulate, leading to water hammer and damage to control valves.
Process Traps, on the other hand, are designed for high-capacity applications such as heat exchangers and coils. These traps handle larger volumes of condensate and require precise calculations to ensure they are correctly sized for the application. When dealing with constant or modulating steam pressure, choosing the right process trap is essential for maintaining system efficiency.
The Consequences of Failed Steam Traps
When a steam trap fails, the impact on your system can be significant.
- Failed Closed: A trap that fails closed will cause condensate to back up into the system. For process traps, this can result in a flooded heat exchanger, reducing its ability to transfer heat effectively. In other cases, if a coil’s trap fails while cold air is being introduced, it could lead to freezing and potential damage.
- Failed Open: Most traps fail in the open position, which allows steam to blow directly into the condensate return system. If the return system is flooded, this can cause water hammer. In gravity-vented systems, the lost steam is simply vented to the atmosphere, wasting energy and increasing operational costs.
Consider this example:
A failed trap with a 3/16″ orifice operating at 110 psi would lead to a loss of 876,000 pounds of steam per year. We will estimate energy costs around $5 per 1,000 pounds of steam. Additionally another $5 for makeup water, chemicals and wear on boiler equipment etc due to steam loss. This translates to approximately $8,760 in wasted energy annually, assuming a typical commercial rate. This is theoretical and we usually something like half this number in the real world. $4,000 a year is still a crazy amount to lose, especially considering how many traps a facility may have. Now when you consider the cost of repairing or replacing a trap can be around $300, it’s a no brainer.
Why Perform Steam Trap Testing?
1. Energy Savings: Steam trap testing is essential for identifying and repairing faulty traps that can cause significant energy losses. Regular testing can save thousands of dollars in energy costs by ensuring that your system is operating efficiently.
2. Improved System Performance: Faulty steam traps can lead to inconsistent system performance, affecting product quality and production rates. By testing and maintaining your traps, you can ensure that your system operates at optimal efficiency, leading to better results.
3. Reduced Maintenance Costs: Early detection of failed steam traps can prevent more severe damage to your system, reducing the need for costly repairs. Regular testing helps maintain the longevity of your equipment and minimizes downtime.
4. Enhanced Safety: Malfunctioning steam traps can pose serious safety risks, including the potential for water hammer, equipment damage, and even fires. Regular testing helps mitigate these risks, ensuring a safe working environment.
5. Regulatory Compliance: Many industries are subject to strict regulations regarding steam system efficiency and safety. Regular steam trap testing ensures that your system complies with these standards, avoiding potential fines and penalties.
Tools for Effective Steam Trap Testing
Conducting a thorough steam trap test requires the right tools. Here are some essential devices for accurate steam trap testing:
- Infrared Thermometer: Measures the temperature of steam, condensate, and other components, helping identify potential issues.

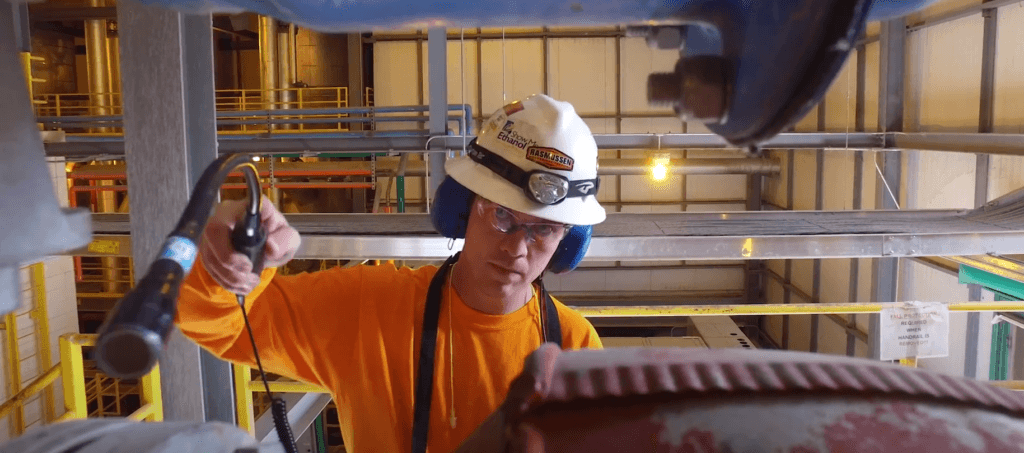

- Ultrasonic Leak Detector: Amplifies the sounds of steam and condensate flow, making it easier to detect leaks or blockages.
- Temperature Monitoring Devices: These tools help detect temperature anomalies, which could indicate a failed trap
Steam Trap Maintenance
Proper maintenance of traps is essential to ensure they continue to function as intended. Regularly inspecting and cleaning the traps will help ensure they remain free of clogs and other debris. It is also important to check the valve seats, diaphragms, and other moving parts for wear and tear and replace them as needed.
Steam traps are an essential component in any industrial boiler system. They play a vital role in maintaining the efficiency and safety of the system by removing condensate and non-condensable gases from the steam lines. There are several types of steam traps available on the market, each designed to handle specific types of condensate and non-condensable gases. Proper maintenance of steam traps is essential to ensure they continue to function as intended, keeping your industrial boiler system running at peak performance.
Conclusion
Without properly functioning steam traps, water accumulates in the system. This can lead to several problems, including:
- Water Hammer: As steam moves through the pipes, it can pick up water and hurl it at high speeds against an elbow or fitting. This phenomenon, known as water hammer, can severely damage your piping and equipment.
- Reduced Heating Efficiency: When water builds up in a steam system, it displaces steam, reducing the amount of heat available for your processes. This can lead to suboptimal heating, affecting product quality and increasing energy costs.
This makes regular steam trap testing a critical aspect of maintaining an efficient, safe, and compliant steam system. By investing in routine testing and maintenance, industries can significantly reduce energy costs, enhance system performance, and prolong the life of their equipment. Whether you are dealing with drip traps in steam mains or process traps in heat exchangers, ensuring they are functioning correctly is essential.
Invest in professional steam trap surveys at least once a year to identify and rectify any issues before they escalate. With the right approach, you can ensure your steam system remains reliable and cost-effective for years to come.
