Steam Traps: A Complete and Clear Guide

Steam traps are a critical component in any industrial boiler system. They play a vital role in maintaining the efficiency and safety of the system by removing condensate and non-condensable gases from the steam lines. Without proper steam traps, the system can become clogged with condensate, reducing efficiency and potentially causing damage to the boiler and other components.Inverted Bucket Steam Trap

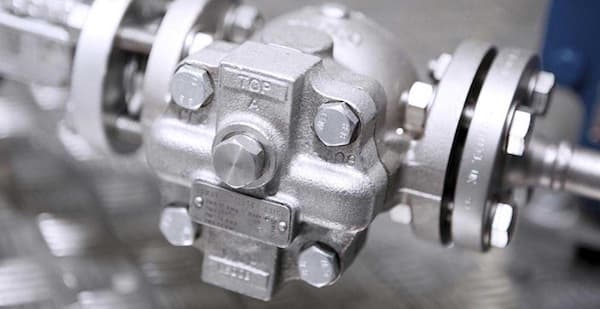

A steam trap is a mechanical device that is installed in the steam lines of a boiler system. Its purpose is to automatically open and close in response to changes in pressure and temperature. This allows condensate and non-condensable gases to be removed from the system while maintaining the flow of steam.

What Is Condensate?

In a boiler system, condensate refers to the water that is produced as a byproduct of the combustion process. As the fuel burns, it produces steam, which is then used to transfer heat to the various components of the system. As the steam flows through the system, it loses some of its heat, causing it to cool and condense back into water. This water, known as condensate, is then collected and returned to the boiler for use in the combustion process. The process of condensation is an important part of the boiler system as it is an indication of the efficiency of the boiler. The condensate also contains dissolved minerals that come from the water used in the boiler, this will corrode the pipes. That is why the condensate itself needs to be removed or treated to avoid causing damage.

Types Of Traps

There are several types of steam traps available on the market. Each type has its own unique characteristics and is designed to handle specific types of condensate and non-condensable gases. The most common types of traps include mechanical, thermostatic, and thermodynamic.

Mechanical traps use a mechanical movement to open and close the valve. They are typically used in low-pressure systems and are designed to handle large volumes of condensate. They are relatively simple to install and maintain, but can be prone to clogging and failure if not properly maintained.

Thermostatic traps use a temperature-sensitive element to open and close the valve. They are typically used in higher-pressure systems and are designed to handle smaller volumes of condensate. They are more complex than mechanical traps and require more maintenance, but they are less prone to clogging and failure.

Thermodynamic traps use the principle of thermodynamics to open and close the valve. They are typically used in high-pressure and high-temperature systems and are designed to handle both condensate and non-condensable gases. They are the most complex and expensive type of steam trap, but they are also the most efficient and reliable.

Inverted Bucket TrapsInverted Bucket Traps

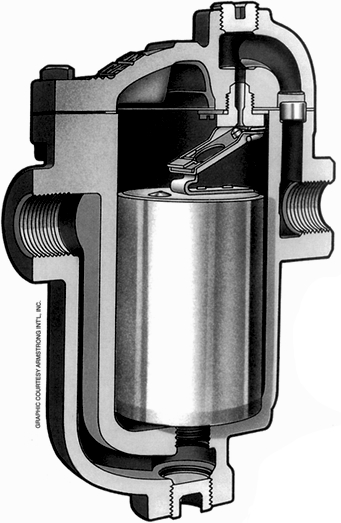

This is a type of mechanical trap that is designed to open and close in response to changes in pressure and temperature. It consists of an inverted bucket (a bucket that is upside-down) that is suspended in the steam line. The bucket is filled with air and is attached to a valve stem.

When steam enters the trap, it causes the bucket to rise and open the valve, allowing the condensate to flow out of the system. When the condensate flow stops, the bucket falls and closes the valve, preventing steam from escaping. An inverted bucket steam trap is simple in design and easy to maintain. However, it is not suitable for systems with high pressure or high temperature steam. These types of traps are typically used in low-pressure systems, and are designed to handle large volumes of condensate.

Float & Thermostatic Steam Traps

Float & Thermostatic Steam Traps

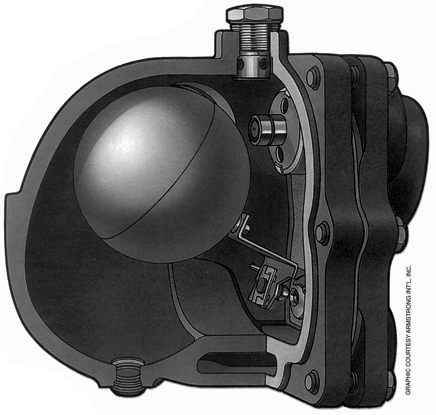

Float & thermostatic traps are a type of mechanical steam trap. They use a combination of a float and a thermostatic element to automatically open and close in response to changes in pressure and temperature. They are designed to handle a mix of steam and condensate, and they are typically used in low-pressure systems.

The float is a buoyant device that is suspended in the steam trap. As condensate accumulates in the trap, the float rises, opening the valve and allowing the condensate to flow out of the system. As the condensate flow stops, the float falls, closing the valve and preventing steam from escaping.

The thermostatic element is a temperature-sensitive device that is attached to the valve stem. It acts as a back-up to the float, opening the valve when the temperature exceeds a certain level. This helps to prevent the valve from sticking closed due to the accumulation of solidified condensate.

Float & thermostatic steam traps are considered to be a more efficient type of steam trap. They are also less prone to clogging and failure compared to other types of mechanical traps. They are relatively simple to install and maintain, but they do require more maintenance than other types of steam traps.

Steam Trap Maintenance

Proper maintenance of traps is essential to ensure they continue to function as intended. Regularly inspecting and cleaning the traps will help ensure they remain free of clogs and other debris. It is also important to check the valve seats, diaphragms, and other moving parts for wear and tear and replace them as needed.

In conclusion, steam traps are an essential component in any industrial boiler system. They play a vital role in maintaining the efficiency and safety of the system by removing condensate and non-condensable gases from the steam lines. There are several types of steam traps available on the market, each designed to handle specific types of condensate and non-condensable gases. Proper maintenance of steam traps is essential to ensure they continue to function as intended, keeping your industrial boiler system running at peak performance.
