Watertube Boiler : A Complete Overview

A Quick Overview

A watertube boiler is a type of boiler that uses water that is circulated through tubes that are surrounded by hot combustion gases.
The water is heated by the combustion gases and turns into steam, which can be used to power turbines or other machinery.
There are several design variations of watertube boilers, each with its own unique features and advantages. This includes Horizontal return tubular (HRT) boilers, Bent tube boilers, Cyclone-fired boilers, Stirling boilers, Opposed firing boilers and Once-through boilers.
Factors to consider when purchasing a watertube boiler include: steam capacity, pressure, fuel source, thermal efficiency, emissions, maintenance, footprint, and price.
They are preferred for their high thermal efficiency, high steam pressure capabilities, and high steam generation rates. They can handle high-pressure and high-temperature applications, and can burn a wide range of fuel types.

How A Watertube Boiler Works

The water that circulates through the tubes is used to transfer heat from the combustion gases to the surrounding water. This heat transfer process creates steam which commonly powers turbines or is used for industrial processes.

The watertube boiler design is unique in that it allows for a large amount of water to be heated quickly and efficiently. This is because the tubes are in direct contact with the combustion gases, which allows for a high rate of heat transfer.

The water in a watertube boiler is pumped into the system using feed pumps. From there, the water flows through the tubes and the combustion gases heat it. As the water is heated, it turns into steam and rises to the top of the drum.

What Is A Steam Drum?

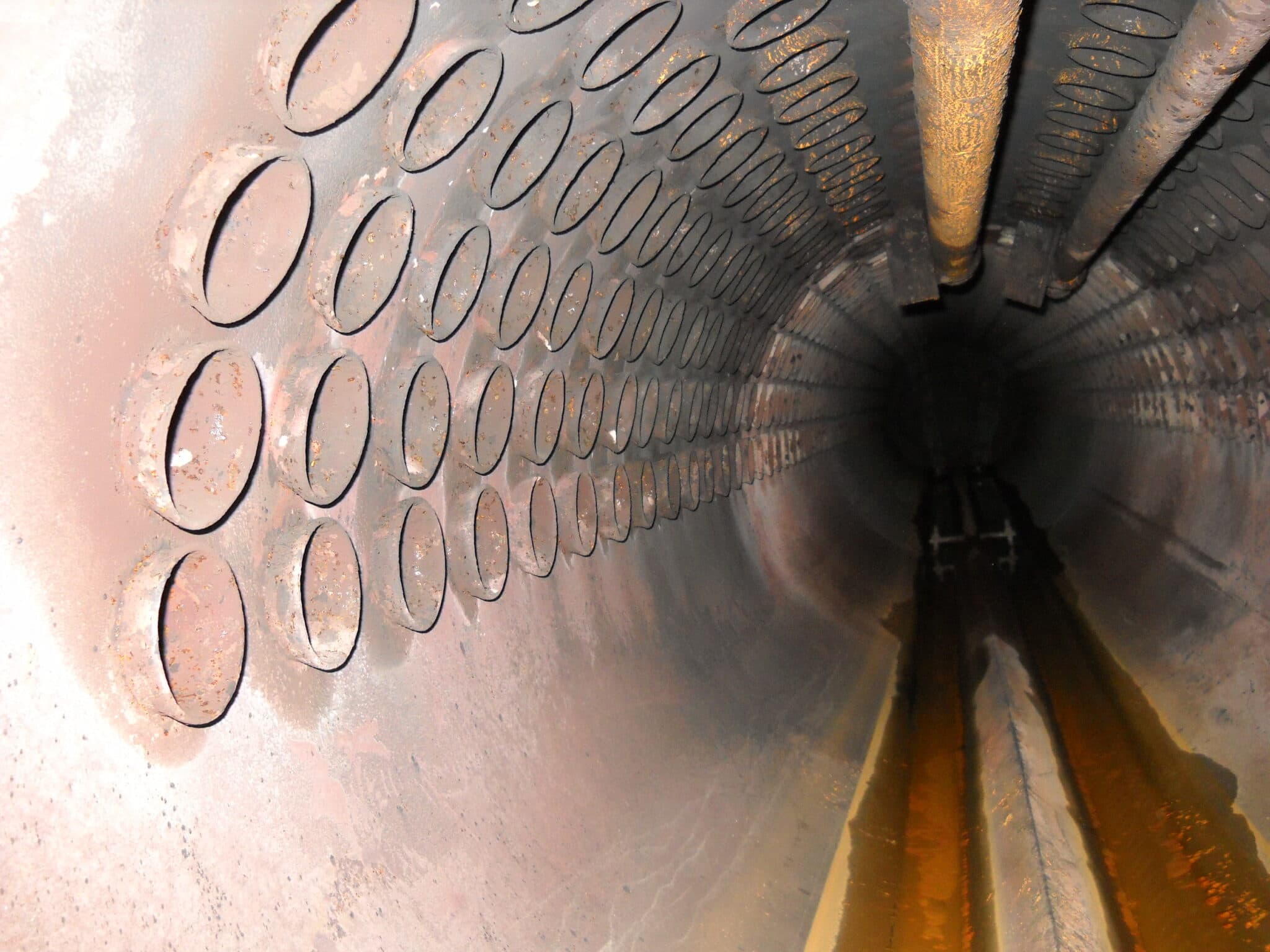

A steam drum in a watertube boiler is a large cylindrical vessel located at the top of the boiler. It serves as a separator for the water and steam inside the boiler. The steam drum is designed to provide a large volume of water storage space. This allows the water to expand as it is heated and turns into steam. The large volume space also allow the steam to be separated as it rises to the top of the drum. Any steam generated in the water tubes will collect in the steam drum.

Advantages Of Watertube Boiler

One of the main advantages of watertube boilers is their high efficiency. Because the tubes are in direct contact with the combustion gases, there is very little heat loss. This means that watertube boilers are able to convert a large amount of fuel into useful energy.

Watertube boilers are also relatively safe and reliable. Because the water is inside the tubes, there is very little risk of explosions or other dangerous accidents. Additionally, the steel tubes which hold the water are durable and long-lasting.

Firetube Vs Watertube

A watertube boiler is a type of boiler that uses water that circulates through tubes that are surrounded by hot combustion gases. A firetube boiler, on the other hand, uses hot combustion gases that travel through tubes, which are surrounded by water. Watertube boilers are typically larger and can handle higher pressure and temperatures than firetube boilers. They also have a higher thermal efficiency, which means they can convert a larger amount of fuel into useful energy. Firetube boilers are more compact and typically used for lower pressure and temperature applications.

Industries That Commonly Use Watertube Boilers

Watertube boilers are commonly used in a variety of industrial and commercial applications, including:

Power generation: Watertube boilers are commonly used in power generation plants to produce steam that is used to power turbines and generate electricity.
Chemical and petrochemical industries: Watertube boilers are used to produce steam for chemical and petrochemical processes, such as refining, distillation, and cracking.
Pulp and paper industry: Watertube boilers are used to produce steam for pulp digestion, paper drying, and power generation.
Food and beverage industry: Watertube boilers are used to produce steam for food and beverage processing, such as canning, pasteurization, and sterilization.
Pharmaceutical industry: Watertube boilers are used to produce steam for various processes in the pharmaceutical industry, such as distillation, sterilization, and drying.
Textile industry: Watertube boilers are used to produce steam for textile manufacturing, such as dyeing, printing, and finishing.
Marine and shipping industry: Watertube boilers are used to produce steam for marine propulsion and power generation on ships and submarines.
District heating: Watertube boilers are used to produce steam for district heating. District heating is a system that delivers heat to multiple buildings from a central plant.

These industries use watertube boilers because of their high thermal efficiency, high steam pressure capabilities, and high steam generation rates. They can also handle high-pressure and high-temperature applications, and can burn a wide range of fuel types.

Considerations When Purchasing A Watertube Boiler

When purchasing a watertube boiler, there are several things to consideration:

$Working On Refractory$ Steam capacity and pressure: The steam capacity and pressure requirements will determine the size and type of boiler needed.
Fuel source: The type of fuel that will be used to power the boiler is also an important consideration. Watertube boilers can be powered by a variety of fuels, including natural gas, oil, coal, and biomass.
Emissions: The emissions produced by the boiler, such as carbon dioxide and nitrogen oxide, should also be taken into consideration. The regulations for emissions vary by region, and it’s important to choose a boiler that meets the required standards.
Maintenance and repair: The cost and ease of maintaining and repairing the boiler should also be considered. Some boilers require more maintenance and repair than others, which can impact the overall cost of ownership.
Footprint: The size and space required to install the boiler should also be taken into account. Watertube boilers are typically larger than firetube boilers, so the available space should be considered before purchasing.
Price: Lastly, the price of the boiler should be considered. A higher price does not always mean a better boiler.
