A Manageable Analysis: Watertube vs Firetube Boilers

Boilers play a crucial role in providing heat and power needed for many processes. When it comes to boiler designs, there are two primary types that stand out: watertube vs firetube boilers. Understanding the differences and advantages of each type is essential for making informed decisions in selecting the right boiler for your application. In this article, we will compare and contrast watertube and firetube boilers by highlighting their unique characteristics, operating principles, and suitable applications.

Commercial and industrial boilers operate based on similar principles, regardless of the specific type (firetube, watertube, etc.). These boilers serve the primary purpose of generating steam or hot water for heating, power generation, or industrial processes. A fuel source, such as natural gas, oil, or biomass, combusts within the boiler’s combustion chamber. The heat that is produced by the combustion process transfers to the boiler’s heat exchanger.¬†

Steam or hot water that is generated, distributes through the pipes to various points of use within the facility. Control systems maintain optimal operating conditions, regulating fuel and air supply, water level, pressure, and temperature to ensure efficient and safe boiler operation.

Watertube Boilers

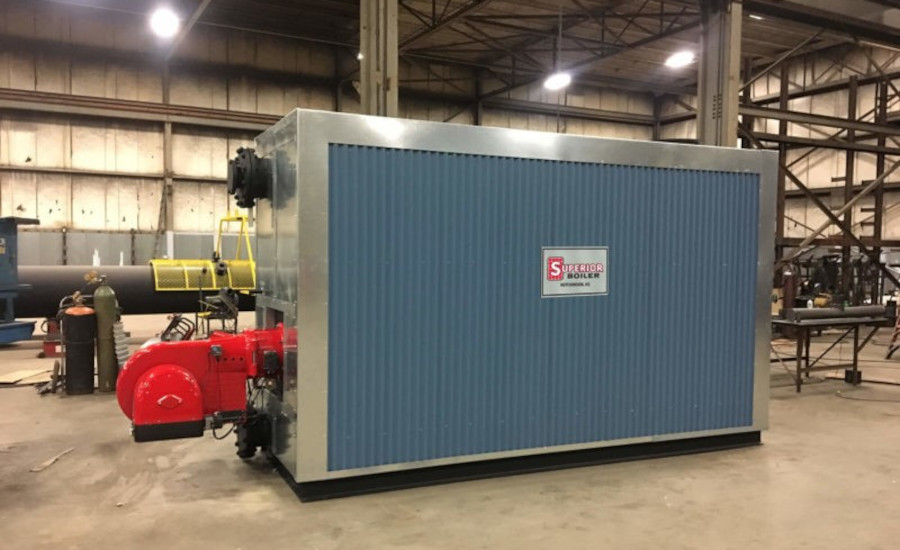

Superior watertube boiler

Watertube boilers derive their name from the arrangement of the boiler’s heating surfaces. In this design, water circulates within tubes that are surrounded by hot gases of combustion. These boilers offer several advantages:

  1. Higher Efficiency: Watertube boilers typically exhibit higher efficiency due to their larger heating surface area and their ability to withstand higher pressures. This feature enables better heat transfer and results in improved energy efficiency.
  2. Enhanced Safety: Watertube boilers have a safety advantage. The water inside the tubes acts as a natural barrier and it reduces the risk of catastrophic explosions. The smaller volume of water contained within the tubes also leads to faster response times and rapid steam generation. Miura says in terms of talking about watertube vs firetube boilers, “Watertube boilers…only require roughly 10% of the water in firetube boilers. This helps to limit the risk of too much water turning into steam instantly and blowing the doors off the boiler, which is possible with conventional boilers. More importantly, all of the water is confined inside the tubes. If one of those tubes were to break from the pressure, only that tube will be affected and not the entire boiler. This makes a serious explosion in a watertube boiler next to impossible.”
  3. Scalability: Watertube boilers are well-suited for high-capacity applications, such as power generation and large-scale industrial processes, where high pressure and high-temperature steam is required.

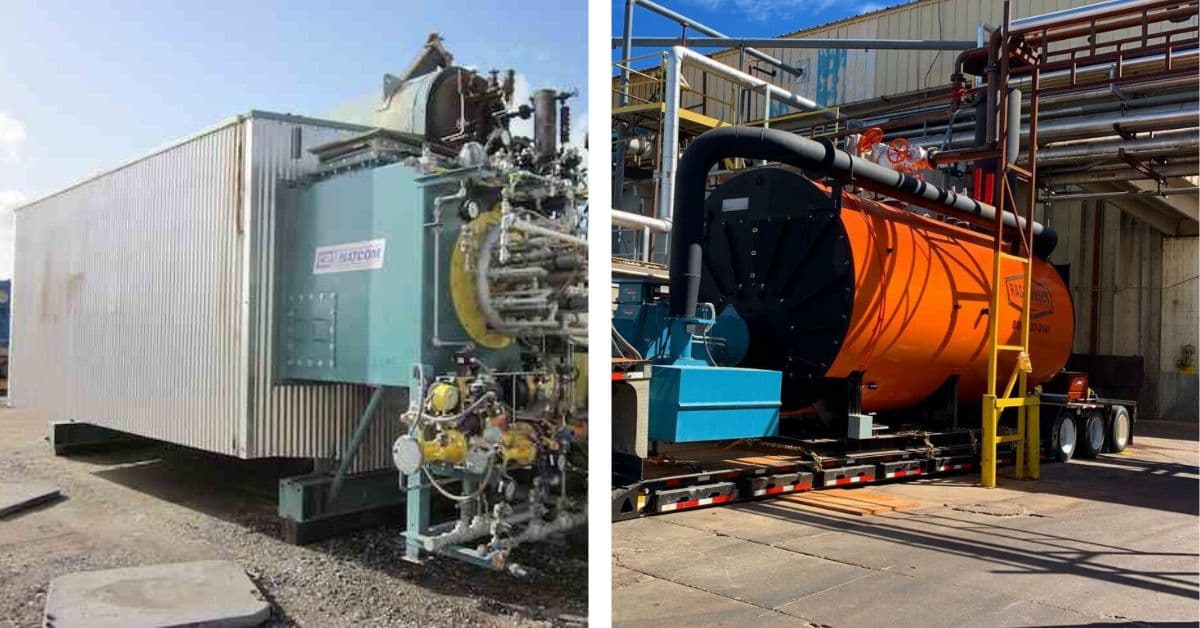

Firetube BoilersRasmussen 1000 HP Johnson Rental Boiler with Webster Burner

Firetube boilers feature a configuration where hot gases of combustion pass through tubes that contain water. This design offers distinct advantages:

  1. Compact Size: Firetube boilers are relatively compact compared to watertube boilers, which makes them suitable for applications with limited space availability. Their smaller size also facilitates easier transportation and installation.
  2. Reaction Time: Firetube boilers have a specific advantage in their ability to handle a sudden elevated load surge more effectively due to their large steam disengaging area. However, if the pressure happens to drop, it will take a longer time to regain the desired operating pressure.
  3. Easy Maintenance: The straightforward design of firetube boilers simplifies maintenance and repair procedures. Access to the tubes is easily achievable, enabling efficient cleaning and inspection. Cleaning and repairing is easier because of the ability to execute it from the outside rather than from within.

Watertube Boiler Pros:

  • These boilers can take very high steam pressures because of their design.
  • Enhanced safety as water acts as a natural barrier.
  • These boilers have a high quality of steam.
  • Watertube boilers do a great job working in large power plants.

Watertube Boiler Cons:

  • Generally more expensive to manufacture and install.
  • Requires a larger physical footprint compared to firetube boilers.
  • Cleaning and maintenance is a little more difficult.

Firetube Boiler Pros:

  • Relatively lower cost of manufacturing and installation.
  • Compact size, making it suitable for applications with limited space availability.
  • The control systems tend to be easier to use than watertube control systems.
  • Easy maintenance and access to tubes for cleaning and inspection.

Firetube Boiler Cons:

  • They usually have a smaller capacity.
  • A lower quality of produced steam.
  • They take longer for the pressure to build up because of the large capacity of water.
  • Water quality control may be more challenging.

Choosing the Right Boiler

A man working on boiler repair.

The watertube vs firetube boilers debate will not matter without regular maintenance, including cleaning, inspection, and water treatment. Selecting the appropriate boiler type depends on various factors. These factors could include things like specific application, desired capacity, efficiency requirements, and space limitations. Here are a few scenarios where one type may be preferable over the other:

1. Watertube Boiler Applications:

  • Power generation plants
  • Industrial processes requiring high-pressure steam
  • Steam-driven turbines

2. Firetube Boiler Applications:

  • Small-scale industrial processes
  • Commercial buildings
  • Facilities with limited space availability

Watertube vs Firetube Boilers Conclusion:

Watertube boilers offer higher efficiency, thanks to their larger heating surface area and ability to handle higher pressures. Safety enhances as water acts as a natural barrier, reducing explosion risks. Watertube boilers are scalable for high-capacity applications and provide better water quality control. They require less maintenance and have a longer lifespan compared to firetube boilers. These advantages make watertube boilers suitable for power plants and industrial processes that demand high-capacity steam generation. Both watertube and firetube boilers offer unique advantages, making them suitable for different applications. Watertube boilers excel in high-capacity scenarios, providing higher efficiency and enhanced safety. On the other hand, firetube boilers are more compact, easy to maintain, and ideal for applications with space constraints. Ultimately, the decision between the two types should be based on careful consideration of the specific requirements and constraints of the intended application.
