Pressure Vessel Repair : Ensuring Safety and Longevity

Pressure vessels come in a variety of designs and applications, ranging from storage tanks for liquids and gases to reactors in chemical plants. Despite their differences, they share a common goal: to contain substances under high pressure without compromising safety. When issues arise, timely pressure vessel repair is critical to maintaining structural integrity and operational reliability.

Some common types of pressure vessels include:

Boilers : Specialized pressure vessels designed to generate steam or hot water. Common issues include tube failures, leaks, and structural damage from thermal expansion and contraction.-
Storage Tanks: Used for holding gases or liquids like propane, ammonia, or chemicals under pressure. Common issues include corrosion, leaks, and structural degradation.
Heat Exchangers: Widely used in industries ranging from food processing to petrochemicals, heat exchangers transfer heat between fluids. Those operating under high pressure, qualify as pressure vessels and may require repairs to tube bundles, seals, or structural components.
Compressed Air Tanks: Essential in manufacturing, these vessels store and regulate compressed air. Common repairs involve sealing leaks and addressing structural fatigue.
Autoclaves: Used in aerospace and medical manufacturing, these vessels require seal and structural repairs due to their high-pressure, high-temperature applications.

While each type has unique repair needs, they share overlapping principles for safety and compliance.

The Pressure Vessel Repair Process

Repairing a pressure vessel is a detailed process that requires specialized expertise and adherence to strict standards. Below is an outline of key steps in pressure vessel repairs:

1. Initial Assessment

A thorough inspection identifies damage and determines the scope of repairs. Common issues include:

Cracks and Leaks: Often caused by stress or corrosion.
Erosion and Corrosion: Weakens structural integrity.
Component Failure: Includes gaskets, tubes, or seals.

2. Material Preparation

Repairs require materials compliant with ASME and NBIC standards. Known as “code plate,” these materials undergo stringent quality checks for composition, heat treatment, and traceability.

3. Component Replacement

Components like gaskets, tubes, or linings are fabricated or replaced as needed. Precision machining ensures proper fit and functionality. For example:

Tube Replacement: Tubes in heat exchangers or boilers are removed and replaced using methods like rolling to create watertight seals.
Seal Repairs: Autoclave seals are replaced to handle high pressure and temperature.

4. Welding and Fabrication

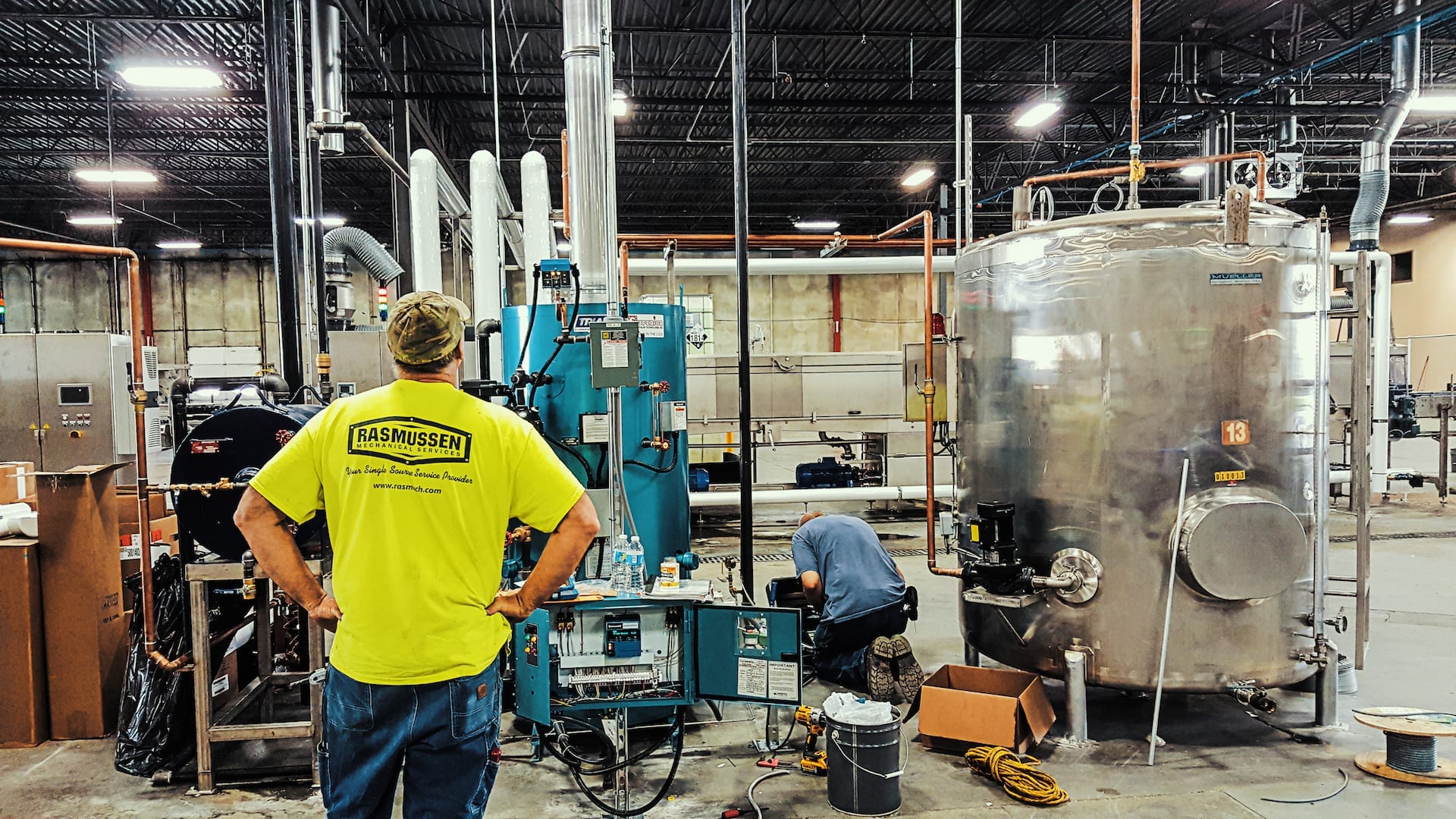

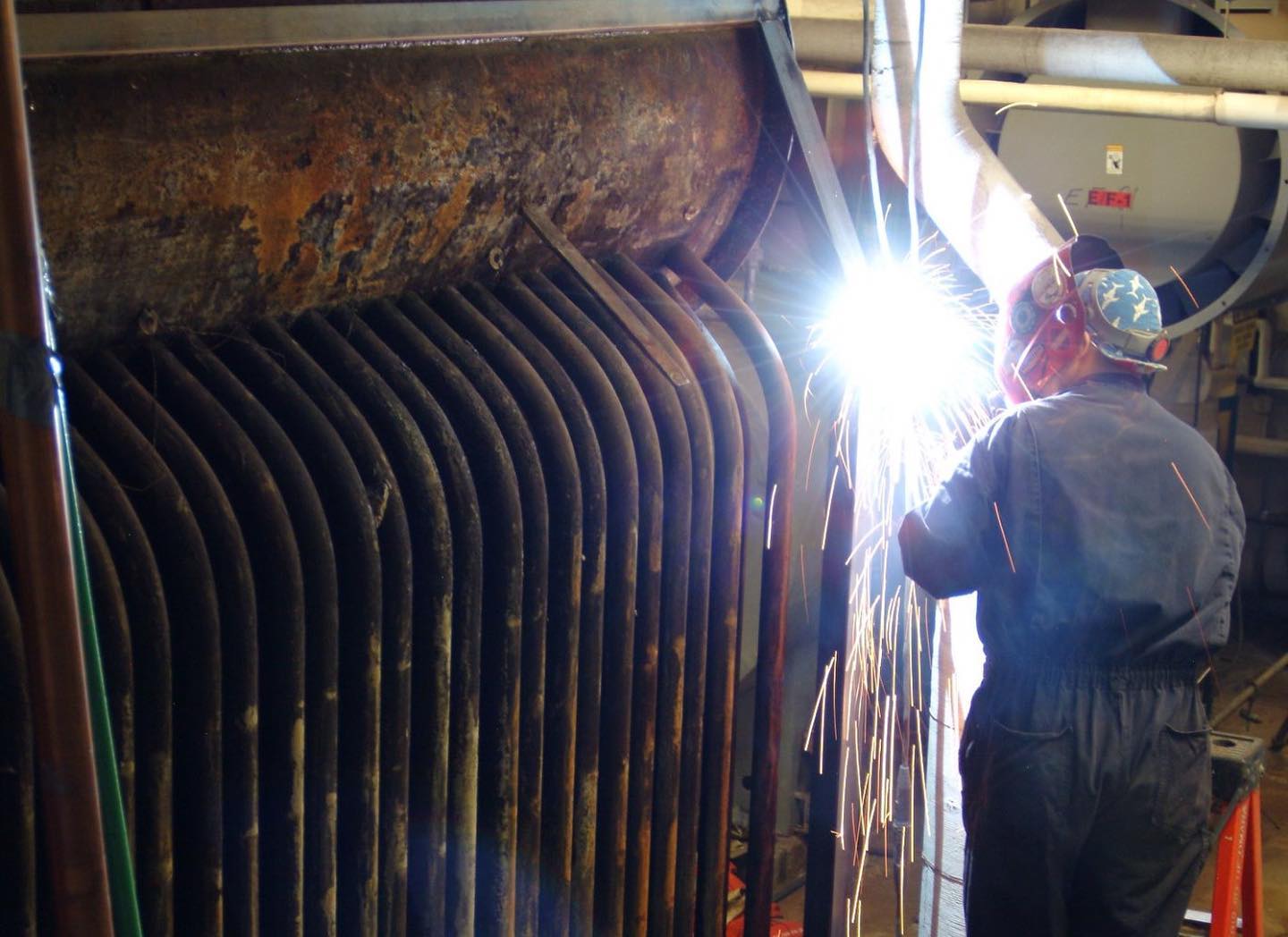

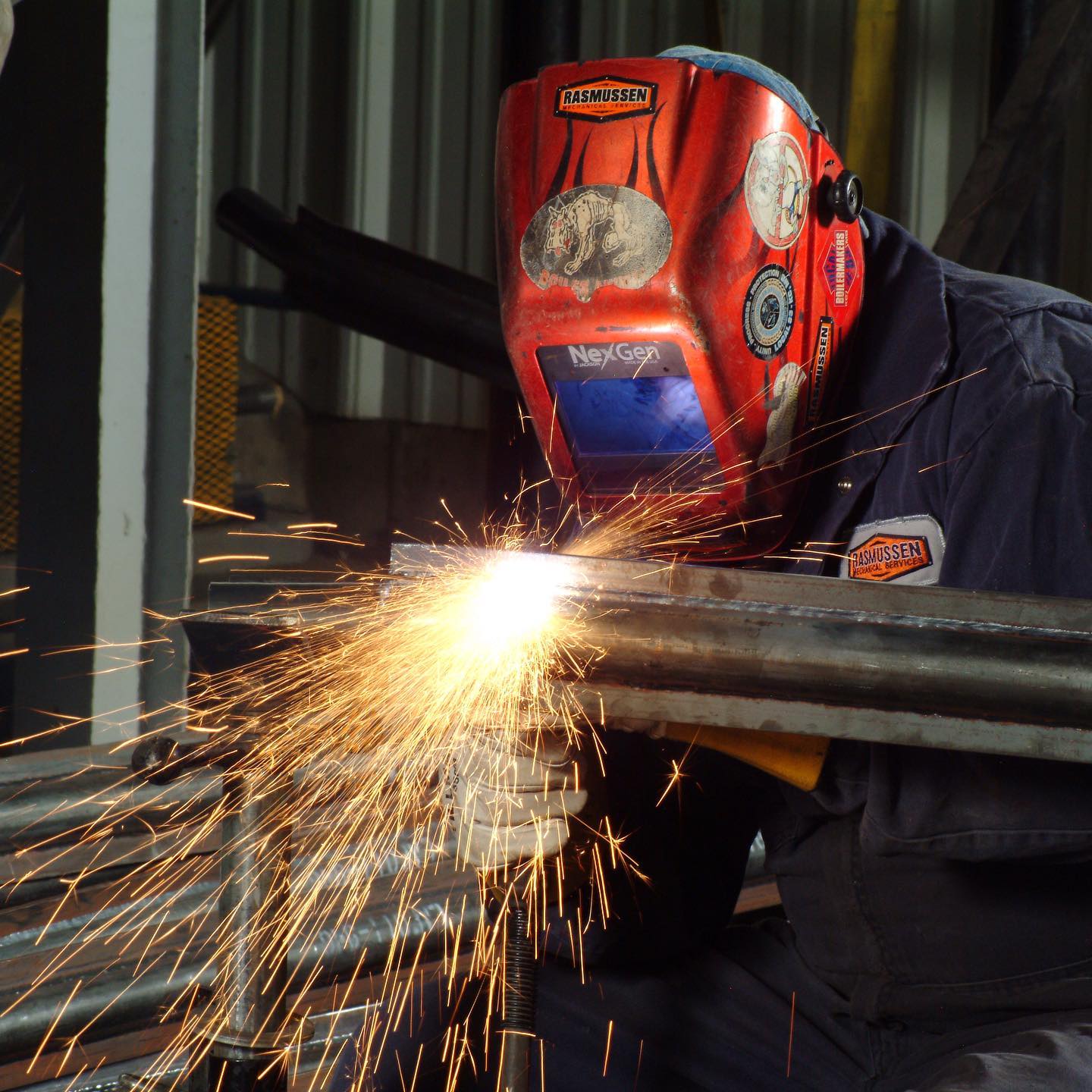

Welding is a cornerstone of many pressure vessel repairs. Certified welders follow ASME standards, ensuring proper technique and structural integrity. Key considerations include:

Preheating: Prevents rapid expansion and contraction during welding, reducing the risk of thermal cracking.
Post-Weld Heat Treatment (PWHT): Relieves residual stress, improves material ductility, and enhances durability.
Non-Destructive Testing: Ensures weld quality without damaging the material, using techniques like radiography or ultrasonic testing to detect subsurface flaws.

5. Testing and Certification

After repairs, rigorous testing ensures the vessel meets safety standards. Tests include:

Hydrostatic Testing: Validates pressure resistance by subjecting the vessel to pressures above its maximum allowable working pressure (MAWP).
Leak Detection: Identifies small, undetected leaks that could compromise operational safety.
Ultrasonic Testing: Finds hidden flaws within the material, such as inclusions or voids, that could lead to failure under stress.

6. Surface Treatments

Post-repair surface treatments like anti-corrosion coatings or anodizing extend the vessel’s service life. These treatments are particularly critical for vessels exposed to harsh chemicals or extreme environments.

Boilers: A Category of Pressure Vessels

Among pressure vessels, boilers stand out due to their widespread use and operational demands. Boilers generate steam by applying heat to water, making them integral to industries like power generation, manufacturing, and food processing. The high temperatures and pressures involved make proper maintenance critical.

Common Boiler Repairs

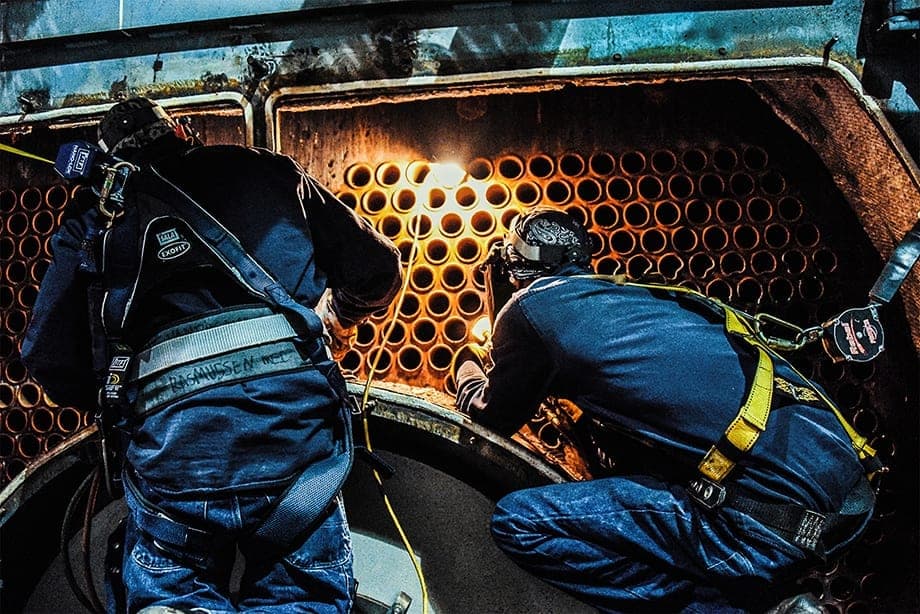

Tube Repairs: Boiler tubes experience pinholes, cracks, or ruptures, often requiring rolling or replacement.
Tube Sheet Replacement: Damaged tube sheets, which connect boiler tubes, are replaced using ASME-compliant materials.
Vessel Repairs: Expansion and contraction from temperature fluctuations can cause cracks or material fatigue.

Testing for Boilers

Boilers undergo frequent inspections, often dictated by regulatory requirements. These include:

Hydrostatic Testing: Ensures the vessel can handle maximum operating pressure.
Visual Inspections: Identifies external damage or leaks.
Operational Testing: Confirms all safety systems function correctly.

Technical Considerations in Repairs

Repairing any pressure vessel—boilers included—requires detailed technical expertise. The following are key factors:

Material Compatibility: Ensuring replacement parts match the operational environment’s demands, such as temperature, pressure, and chemical exposure.
Precision Machining: Components must meet exacting specifications to maintain performance. Advanced CNC equipment ensures alignment and accuracy within millimeter tolerances.
Weld Integrity: Proper welding techniques, such as submerged arc welding for large vessels, prevent weak points and ensure structural integrity.
Regulatory Compliance: Documentation and inspections must align with NBIC and ASME requirements, providing a traceable record of all repairs.

The Importance of Routine Maintenance

Regular inspection and maintenance are critical for pressure vessel longevity. Neglected maintenance can lead to catastrophic failures, endangering both personnel and operations. The National Board Inspection Code (NBIC) emphasizes a lifecycle approach to vessel maintenance, including:

Inspection: Routine checks for signs of wear, corrosion, or damage.
Testing: Employing methods such as hydrostatic testing or ultrasonic testing to identify weaknesses.
Documentation: Maintaining records of inspections, repairs, and modifications to ensure regulatory compliance.

Case Study: Comprehensive Repair for Cargill’s Pressure Vessel

Rasmussen Mechanical Services completed a critical repair for Cargill, restoring a high-pressure vessel with over 100 2-inch diameter tubes and a 1.5-inch shell thickness. Key highlights include:

Inspection and Assessment: Severe corrosion, pitting, and cracks in tube sheets and tubes rendered the vessel unsafe.
Fabrication and Machining: New tube sheets and seamless carbon steel tubes were fabricated to ASME standards, with 104 precisely drilled tube holes.
Welding and Assembly: Certified welders used ASME Section IX procedures and post-weld heat treatment to ensure durability. Tubes were expanded into tube sheets for leak-proof joints.
Rigorous Testing: Hydrostatic testing, ultrasonic inspection, and leak detection confirmed the vessel’s integrity and compliance.

Results:

Extended the vessel’s lifespan by 20 years.
Restored compliance with ASME and NBIC standards.
Improved thermal efficiency through precise alignment and high-quality components.

This project highlights the importance of expertise and compliance in pressure vessel repair, ensuring safety and reliability for industrial applications.

Benefits of Professional Repairs

Engaging experts for pressure vessel repair offers multiple advantages:

Cost Savings: Timely repairs prevent the need for costly replacements.
Extended Lifespan: Proper maintenance ensures decades of reliable operation.
Compliance Assurance: Adhering to ASME and NBIC standards reduces liability risks.
Operational Continuity: Skilled teams minimize downtime during repairs.

Conclusion

Pressure vessels are vital assets across numerous industries, requiring meticulous maintenance and repair to ensure safety and efficiency. By understanding the repair process and the importance of compliance, operators can maximize their equipment’s lifespan while minimizing risks. Boilers represent just one category of pressure vessels, and their maintenance is a prime example of the precision required in this field. For reliable and professional repairs, partnering with experts ensures both safety and operational success.
