A compressed air audit carefully examines an air system to find inefficiencies, detect leaks, and suggest improvements. This process involves analyzing various components, including compressors, distribution piping, storage tanks, and end-use equipment, to ensure the system operates at peak efficiency.
The Importance of Air Audits in Industrial Settings
Compressed air systems are notorious for energy consumption. The U.S. Department of Energy estimates that between 30-50% of compressed air goes to waste due to inefficiencies and leaks. This waste translates into substantial financial losses for industries. Regular air audits are essential to:
- Identify and Repair Leaks: Even minor leaks can lead to significant energy losses. For instance, a single ¼-inch leak in a compressed air line can cost a facility between $2,500 to $8,000 annually. (This range accounts for variables such as operating pressure, energy costs, and system efficiency)
- Optimize System Performance: Audits assess the entire system, ensuring compressors and other equipment are the right size and function efficiently.
- Reduce Energy Consumption: By addressing inefficiencies, facilities can significantly lower their energy usage, leading to cost savings and a reduced environmental footprint.
Key Components of a Compressed Air Audit
A thorough compressed air audit encompasses several critical steps:
1. Data Collection and Monitoring
Technicians install data loggers to monitor system parameters such as pressure, flow rates, energy consumption, and duty cycles over a specified period. This continuous monitoring provides a comprehensive understanding of the system’s performance and identifies patterns of inefficiency.
- Power consumption analysis: Determines how much energy the compressors consume and compares it to output levels.
- Load profile assessment: Evaluates system demand fluctuations and determines whether compressors have the right staging and are the correct size.
- Leak rate determination: Uses baseline measurements during non-production hours to quantify the volume of air lost to leaks.
2. Leak Detection

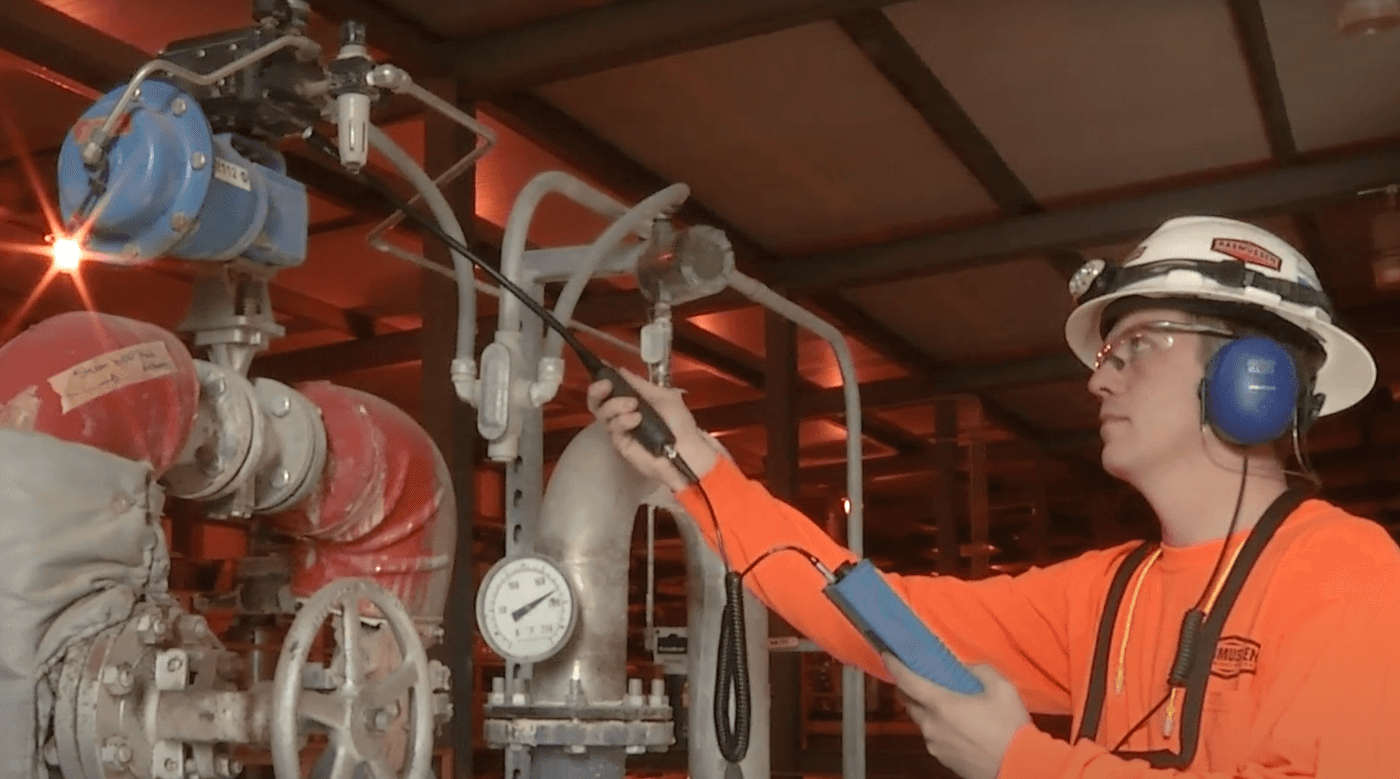

Utilizing ultrasonic leak detectors, auditors can pinpoint leaks that deare inaudible to the human ear. Regular leak detection is vital, as undetected leaks can account for a significant portion of compressed air wastage.
- Common leak locations:
-
- Pipe joints and fittings
- Couplings, hoses, and disconnects
- Pressure regulators and air tools
- Drain traps and valves
- Quantifying leak impact: A 1/8-inch hole in a 100 psi system can waste nearly 20 CFM of compressed air. This can add thousands of dollars to annual energy costs.
3. System Pressure Analysis
Evaluating the system’s pressure profile helps determine if the operating pressure is appropriate for the applications. Operating at higher pressures than necessary can increase energy consumption and exacerbate leaks.
- Pressure drop analysis: Measures differential pressure across filters, dryers, and piping to identify restrictions.
- Demand-side pressure regulation: Ensures that individual applications receive only the necessary pressure, preventing overuse.
- Storage optimization: Uses strategically placed storage receivers to stabilize pressure fluctuations and reduce system cycling.
The Department of Energy did a study that brings home the importance of system pressure analysis. For systems operating around 100 psi, every 2 psi increase in discharge pressure can result in approximately a 1% increase in energy consumption.
4. Demand Side Evaluation
Assessing the end-use applications ensures efficient and appropriate use of compressor air. Some processes may use more air than necessary or employ compressed air where alternative methods could be more energy-efficient.
- Inefficient uses of compressed air:
- Open blowing instead of using air nozzles or blowers
- Using compressed air for cooling when other methods (like fans) are viable
- Running idle equipment with continuous air supply
5. Piping and Distribution Inspection
The design and condition of the distribution network significantly impact system efficiency. Auditors inspect for issues such as pressure drops, inappropriate pipe sizing, and potential bottlenecks that hinder airflow.
- Pipe material selection: Using aluminum or stainless steel instead of black iron piping can prevent internal corrosion and pressure loss.
- Looped piping configurations: These ensure even pressure distribution and reduce drops at the point of use.
- Minimizing pressure drop: Every 1 psi of unnecessary pressure drop can lead to a 0.5% increase in energy costs.
Advanced Techniques for Energy Optimization
- VSD (Variable Speed Drive) Compressors: Adjust compressor output based on demand, reducing energy waste in facilities with fluctuating air usage.
- Heat Recovery Systems: Capture and reuse waste heat from compressors for space heating or water heating, improving overall efficiency.
- Desiccant Dryer Optimization: Ensures that dryers regenerate only as needed, instead of running continuously, reducing unnecessary energy use.
Benefits of Implementing Air Audit Recommendations
Implementing the recommendations from a compressed air audit comes with several key benefits. One of the biggest advantages is cost savings. Fixing leaks and optimizing system components helps lower energy bills, making operations more efficient and budget-friendly.
Another benefit is longer equipment life. When compressors and other components aren’t overworked, they experience less wear and tear. This means fewer breakdowns, lower repair costs, and a longer lifespan for the equipment.
System reliability also improves. A well-maintained air system is less likely to fail, keeping production running smoothly and avoiding costly downtime.
Finally, these improvements help the environment. Using less energy reduces a facility’s carbon footprint, making operations more sustainable and environmentally responsible.
Implementing an Effective Leak Prevention Program
While conducting an audit is a significant first step, establishing an ongoing leak prevention program is crucial for sustained efficiency:
- Regular Inspections: Schedule routine checks using ultrasonic detectors to identify and address new leaks promptly.
- Employee Training: Educate staff on the importance of leak detection and encourage reporting any suspected leaks.
- Systematic Repairs: Develop a structured approach to repairing identified leaks, prioritizing based on the size and impact of the leak.
- Performance Monitoring: Continuously monitor system performance to gauge the effectiveness of leak prevention measures and make necessary adjustments.
Setting a reasonable target for leak reduction is essential. Aiming for leaks to constitute no more than 5-10% of total system flow is typical for industrial facilities.
Conclusion
Compressed air systems are essential for industrial operations, but they can be expensive to run if not managed properly. Regular air audits help find inefficiencies, detect leaks, and improve system performance. Fixing these issues and implementing a leak prevention plan can lead to significant cost savings.
An air audit isn’t just routine maintenance—it’s a smart investment that improves efficiency and reduces expenses. It can make a big impact on a facility’s bottom line. Contact us today to schedule an air audit for your facility.
