Industrial operations rely heavily on plant air compressors as a source of power for tools, machinery, and processes. In fact, compressed air is often called the “fourth utility” alongside electricity, water, and gas. Producing compressed air is energy-intensive – generating compressed air can account for 10–30% of a plant’s total electricity use. Worse, the U.S. Department of Energy (DOE) estimates 30–50% of that compressed air power is wasted due to leaks, improper design, and other inefficiencies. This makes it crucial for plant managers to carefully select, maintain, and optimize their air compressor systems to avoid energy waste and unnecessary costs. In this comprehensive guide, we’ll cover everything you need to know about plant air compressor systems.
Types of Plant Air Compressors Used in Industrial Plants
Choosing the right type of compressor is foundational to designing an efficient system. The most common plant air compressor types include reciprocating (piston) compressors, rotary screw compressors, rotary vane compressors, scroll compressors, and centrifugal compressors. Below is an overview of each:
Reciprocating (Piston) Compressors
Reciprocating compressors use a piston and cylinder mechanism to compress air. They are best suited for smaller demand ranges (roughly 2 to 25 horsepower) and are known for their reliability with minimal maintenance needs. Reciprocating units deliver high pressure and are often found in workshops and smaller plants. However, they have a limited duty cycle – they need cooldown periods after continuous operation – so they are less ideal for large-scale 24/7 industrial use. Overrunning a piston compressor without rest will shorten its lifespan.
Rotary Screw Compressors

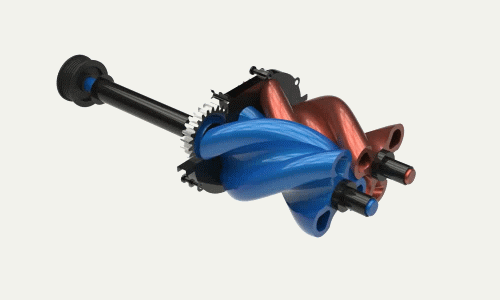

Lysholm screws found inside a rotary screw air compressor.
A workhorse of industrial facilities, rotary screw compressors are widely used across a broad range of sizes (from ~5 HP up to 1,000+ HP). They use two intermeshing helical screws (rotors) to continuously compress air. Most are oil-injected (oil-flooded) designs where oil is introduced to cool and lubricate the screws and help seal the compression chamber. Rotary screws provide steady airflow and can run continuously, making them ideal for large plant air systems. They deliver a lot of air (high CFM) in a relatively compact package. On the downside, oil-cooled screw compressors require proper oil and filtration maintenance to prevent oil carryover downstream. With good upkeep, they are extremely durable and efficient for heavy industrial use.
Scroll Compressors
Scroll compressors feature two interlocking spirals (one stationary, one orbiting) to compress air. They are typically available in smaller sizes (often ~10 to 30 HP) and are valued for delivering oil-free air. Scroll units run very quietly and are often used in labs, hospitals, pharmaceutical production, and any environment where ultra-clean air and low noise are important. For example, medical and dental facilities use scroll compressors for instrument air because they provide clean, dry air and meet standards like NFPA guidelines for medical air. The trade-off is that scroll compressors are only practical for lower flow rates and can have higher initial costs per unit of capacity.

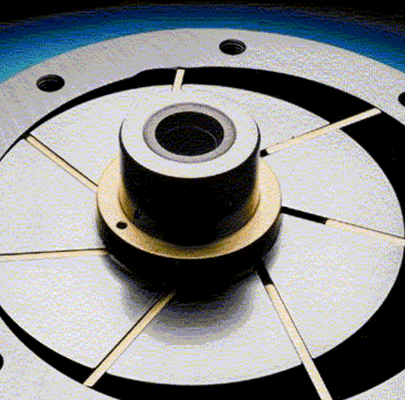

Rotary Vane Internal Components
Rotary Vane Compressors
These compressors use a rotor with sliding vanes that pressurize air against the housing via centrifugal force. Rotary vanes are somewhat less common but can be an effective option. They tend to be quieter than piston or screw compressors and generally cost around 10% less than an equivalent rotary screw model. Many rotary vane units can also be equipped with variable speed drives. They are relatively easy to maintain and offer good efficiency across varying speeds. However, rotary vanes may not achieve the same energy efficiency at full load as modern rotary screws, and they occupy a middle ground in terms of performance.
Centrifugal Compressors
These large compressors are designed for high airflow in bigger industrial plants, typically in the 200 HP to 600+ HP range. Centrifugal compressors use high-speed impellers (spinning “fans”) to accelerate and compress the air. They are inherently oil-free (no internal oil touches the air) and are known for a compact footprint, low noise, and excellent efficiency at high volumes. Centrifugal units are often used when very large continuous air delivery is needed (such as in petrochemical plants or large manufacturing campuses). They also handle variable demand well when equipped with inlet guide vanes or VSD controls. The main considerations are higher complexity and cost – but for large-scale operations, their reliability and energy efficiency can outweigh the expense.
Each compressor type has its place. Specialty needs (like oil-free air or quiet operation) might call for scroll or rotary vane compressors. Understanding these differences helps in selecting the optimal technology for your facility’s requirements.
How to Size a Plant Air Compressor
Proper sizing and development planning are critical to ensure you have enough air to meet demand without overspending on capacity you don’t need. An oversized compressor can be as problematic as an undersized one! It will run inefficiently at partial load and waste energy or cycle on and off too frequently. Here are key steps and considerations for choosing the right compressor system for your plant:
Determine Your Air Demand (CFM): Start by evaluating the compressed air requirements of all your equipment and processes. Add up the cubic feet per minute (CFM) required by tools and machines that will run simultaneously under peak conditions. Also consider average demand versus peak demand. If your plant has certain high-air-use applications that run intermittently (e.g. a sandblasting booth used a few hours a week), you may not want to size the main compressor for that extreme peak alone. Oversizing a compressor can leave it running at only ~10% capacity most of the time, which is extremely inefficient. Instead, you might handle peaks with a secondary compressor or a stored air buffer. Also analyze your demand profile across shifts. Many plants have two high-demand shifts and a lighter third shift. Your goal is to match compressor capacity to typical demand, while using storage tanks or backup units to handle short-term spikes.
- Pressure Requirements: Identify the highest pressure (PSI) needed by your equipment and ensure the compressor can supply that. Most general industrial tools operate in the 90-125 PSI range. However, remember that higher than necessary pressure wastes energy. Every 2 PSI increase in system pressure raises energy consumption by about 1%. Size the compressor for the minimum pressure that reliably meets your end-use needs.
- Air Quality and Dryer Needs: Consider the air quality requirements of your processes. If you have sensitive applications (food processing, pharmaceuticals, painting operations, etc.), you may require very dry air and oil-free air. This affects selection in two ways: (1) you might choose an oil-free compressor design (like centrifugal or scroll) if even trace oil carryover is unacceptable, and (2) you’ll need appropriate air dryers and filters downstream. For example, a refrigerated dryer brings dew point to ~38°F which is fine for general manufacturing, whereas a desiccant dryer can achieve -40°F or lower dew points for ultra-dry air needed in electronics or pharma. Air quality needs will dictate the compressor type and the drying/filtration equipment required.
Compressor Type and Duty Cycle: Match the compressor technology to your load and duty cycle. If your demand is relatively low and intermittent, a reciprocating compressor might suffice. For continuous heavy use, a rotary screw is more appropriate. For extremely large or oil-free requirements, consider centrifugal. Each type’s profile (as discussed earlier) should align with your plant’s needs in terms of reliability, maintenance, and lifecycle cost. Also consider if you’ll use one large compressor or multiple smaller units. Sometimes two compressors (lead and lag) can improve redundancy and allow one to shut off during low demand periods.
- Future Growth and Capacity Buffer: It’s wise to include some safety margin for future expansion or unforeseen demand spikes, but don’t significantly overshoot. Traditional sizing guidelines often suggest adding 10–20% extra CFM capacity as a buffer. You can also incorporate extra air receiver tank volume as a buffer for short peaks rather than oversizing the compressor itself. The DOE recommends taking a tailored approach based on your specific load profile and using storage strategically.
- Consult Expertise: Finally, don’t hesitate to consult with compressed air system experts or manufacturers when sizing a system. They can perform demand assessments or even an air audit to accurately measure your needs.
Careful sizing and selection of your plant air compressor will set the foundation for an efficient system.
Piping and Distribution Network
The compressed air piping system in your plant plays a critical role in maintaining pressure, flow, and air quality. Even the best plant air compressor will perform poorly if the piping is poorly designed or maintained. Key factors to consider are layout, material selection, and leak prevention.
Layout and Design: Minimize sharp bends and long runs, which create turbulence and pressure drop. Use looped piping where possible to ensure balanced pressure and reduce drop at the point of use. Pipes should be sloped and include drip legs to drain condensate, preventing corrosion and airflow restrictions.
- Materials: Avoid black iron and galvanized steel, which can corrode internally and shed debris. Instead, opt for corrosion-resistant. Consider smooth-wall materials like aluminum, stainless steel, or copper, which reduce pressure drop and contamination. For some systems, plastic piping rated for air service (like HDPE or ABS) may be appropriate—never use PVC, which is banned by OSHA for compressed air due to shatter risk.
- Leak Prevention: Air leaks are common at joints and fittings and can cost thousands in energy annually. Use quality fittings, sealants, and proper support during installation. Pressure-test new piping and routinely inspect for leaks—especially at thread connections, couplers, hoses, and valves. Even a ¼-inch leak can waste $2,500–$8,000 in energy per year.
Air Dryers and Air Quality Treatment
Moisture is the enemy of any compressed air system. Compressing air squeezes water vapor out of the air. If that moisture isn’t removed, it will condense in your pipes and tools – causing rust, washing away lubricants, and even ruining finished products. Air dryers are therefore essential for most plant air compressor systems.
There are three common types of dryers, each suited to different needs:
- Refrigerated Air Dryers: These are the most widely used dryers in general industrial plants. A refrigerated dryer works like an AC system. It chills the compressed air to condense out water vapor, achieving a dew point around 35–40 °F. The condensed water is drained off, and the cool, dry air is then reheated slightly (to avoid sweating the pipes) before going to the plant. Refrigerated dryers are popular because they are cost-effective and energy-efficient for moderate drying needs. They remove the bulk of water vapor, making the air suitable for most pneumatic tools and equipment. However, they typically cannot achieve extremely low dew points. This means they might not be suitable for moisture-sensitive applications or for outdoor systems exposed to sub-freezing temperatures (condensate could freeze in lines).
Desiccant Dryers (Regenerative): Desiccant dryers use moisture-absorbing materials (like activated alumina or silica gel) to pull water vapor out of the air. They usually come in twin-tower designs. While one tower’s desiccant is drying the compressed air, the other tower is regenerating. Desiccant dryers can achieve very low dew points (–40 °F or even –100 °F), making them ideal for critical applications. Pharmaceutical manufacturing, instrumentation, or any facility where even trace moisture is unacceptable is where you wil find these. The trade-offs: they consume more energy (especially heated types), and the desiccant beds require periodic replacement. Also, if any oil carries over from the compressor into a desiccant dryer, it can foul the desiccant. So these are often paired with coalescing filters and oil-free compressors. Use desiccant dryers only when needed for the application, given their higher operating cost.
- Membrane Dryers: These dryers use semi-permeable membrane fibers to allow water vapor to come out of the compressed air. They are often used for smaller flow rates or point-of-use drying. Membrane dryers have no moving parts and can be very compact. They also don’t require electricity. The drying happens via the pressure differential across the membrane. They tend to require very clean air (prefilters) to avoid fouling the membrane. Membrane dryers excel in applications where simplicity is a priority and where extremely low dew point isn’t required. They might be found in remote instrument panels, mobile compressor units, or outdoor installations.
Air Receiver Tanks (Wet and Dry Storage)
Air receiver tanks are critical to store and stabilizing system pressure. There are two main types:
Wet Air Tanks (Wet Receivers): Installed after the compressor and before the dryer, wet tanks act as the first stage of moisture removal. As hot compressed air enters, it cools and condenses 60–70% of the water vapor. This reduces the load on downstream dryers and protecting tools and piping. Wet receivers also dampen pulsations and support short bursts of demand. Because they collect water and oil, they require regular draining—preferably with an automatic or zero-loss drain—and should be paired with an oil-water separator.
- Dry Air Tanks (Dry Receivers): Positioned after the air dryer, dry tanks serve as the main storage reservoir, helping maintain consistent pressure during demand surges and reducing compressor cycling. This is especially valuable in manufacturing or pharmaceutical settings where stable airflow is essential.
For proper sizing, plan for 1–3 gallons of receiver capacity per CFM of compressor output, typically split one-third to the wet tank and two-thirds to the dry tank. Tanks should be rated at least 25–30% above your system’s maximum pressure and include safety relief valves. Regular inspection and draining are key to long-term reliability—especially for wet tanks, which collect most of the system’s condensate.
Aftercoolers
An aftercooler is a heat exchanger that cools the hot compressed air coming out of the compressor. When air is compressed, its temperature skyrockets (often to 180°F–300°F depending on the compressor type). This heat not only holds a lot of moisture in vapor form, but can also be detrimental to downstream equipment. An aftercooler immediately removes most of that heat, typically using ambient air or water as a cooling medium, before the air enters the rest of the system.
By cooling the air, aftercoolers cause a large portion of water vapor to condense into liquid, just like a wet receiver does (in fact, many compressors have an aftercooler and then feed directly into a wet tank for the condensate collection). Cooler air is denser and easier to handle. For instance, cool air maintains pressure better because it won’t lose pressure due to heat expansion. Additionally, cooling the air helps remove water, oil vapors and some contaminants. Essentially, an aftercooler “conditions” compressed air by normalizing its temperature and removing moisture, which results in improved efficiency, better air quality, and extended equipment life.
There are two main types of aftercoolers: air-cooled and water-cooled. Air-cooled aftercoolers look like radiator coils with a fan. They use ambient air blowing across finned tubes to cool the compressed air. Water-cooled aftercoolers use water running through a heat exchanger (shell-and-tube or plate style) to chill the air. Water cooling can achieve a lower final air temperature (close to the water temperature) and is used in larger compressor installations or where a cooling water supply exists.
Energy Efficiency and the Benefits of VSD Compressors
Energy costs typically constitute the largest expense over a compressor’s life. These far exceed the initial purchase price. In a typical plant, electricity for air compressors over 10 years can cost 5–10 times the compressor’s purchase cost. Recall that compressed air generation often accounts for up to 30% of industrial energy use, but due to poor practices, half of that energy can be wasted. In fact, the DOE states that optimizing compressed air systems can reduce energy consumption by 20–50% in many cases. Here are some key efficiency strategies:
1. Use Variable Speed Drive Compressors
One of the most effective ways to cut energy waste is to utilize VSD compressor technology. Fixed-speed compressor can only run at 100% and then unload (or stop) when demand is lower. A VSD compressor on the other hand adjusts its motor speed continuously to match air demand. When demand drops, the compressor slows down and draws just enough power to supply that lower airflow. This means no unloaded idling and far less on/off cycling. As a result, power consumption becomes almost proportional to the air actually used. In some cases, plants have cut compressor electricity costs by over 50%. VSDs also provide soft start. That means no big current spikes on start-up, which avoids peak demand charges and reduces motor wear.

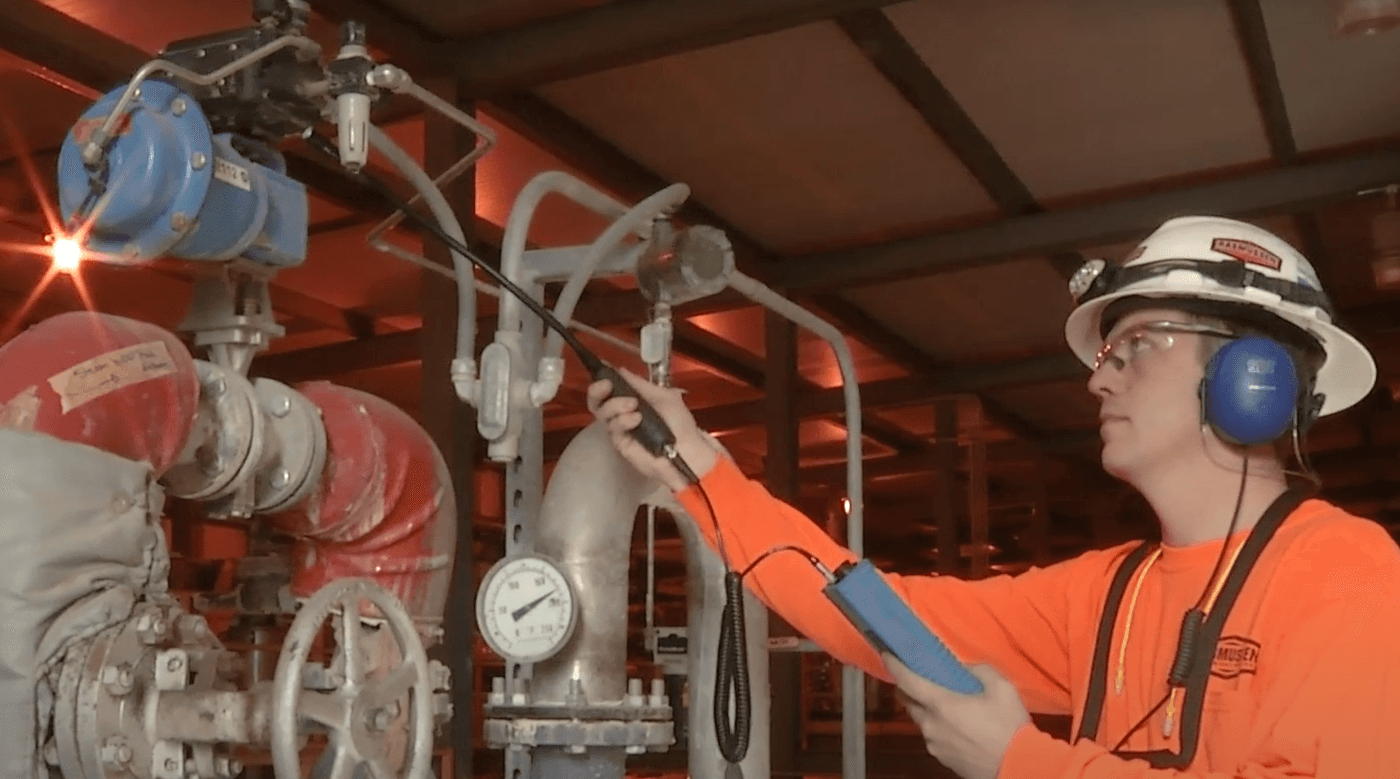

Rasmussen Mechanical technician using Ultrasonic Leak Detection.
2. Prevent and Fix Leaks
We’ve mentioned leaks multiple times because they are epidemic in compressed air systems and represent pure energy waste. A leak does no useful work, yet your compressor still consumes power to maintain pressure. Regularly survey your system for leaks, using ultrasonic leak detectors for those too quiet to hear. Fixing leaks yields immediate energy savings. To put it in perspective, a single 1/8-inch (3 mm) hole in a 100 psi line can waste roughly 20 CFM of airflow, which could cost on the order of $2,000+ per year in electricity. Multiply that by several leaks and you see the potential.
3. Optimize System Pressure
As mentioned, running at higher pressure than needed wastes energy (approx. 0.5–1% energy increase per 1 psi overtarget). Audit your system’s pressure requirements – if everything works fine at 95 psi, don’t set the compressor cut-out at 110 “just to be safe.”
4. Improve Piping and Reduce Pressure Drop
Pressure drop in filters, dryers, and long piping runs means the compressor has to generate higher pressure at its outlet to compensate. By maintaining clean filters (replace or clean intake filters, inline filters, etc.), you avoid extra pressure drop that makes the compressor work harder. For instance, a dirty coalescing filter that causes a 6 psi drop versus 2 psi when clean can add ~2% to the system’s annual energy costs. In one DOE case, that was $1,265 per year wasted just from neglecting a filter. Also, ensure piping is adequately sized – velocity-induced drop can be significant if pipes are too small or full of bends.
5. Use Automatic Controls and Scheduling
Modern compressor controls can sequence multiple compressors and shut off units during idle times. If your plant doesn’t operate 24/7 at full production, don’t run compressors at full tilt during off hours. Use timers or the compressor’s controller to turn off or idle compressors when not needed (overnight, weekends, between shifts).
6. Heat Recovery
Approximately 80–90% of the electrical energy a compressor uses is converted into heat. Instead of letting that heat escape, facilities can implement heat recovery systems to capture it. For example, hot compressor discharge air or oil can be routed through heat exchangers to heat building space, process water, or provide pre-heating for boilers. Many rotary screw compressors can have a duct to direct warm cooling air into a warehouse in winter. By reusing this otherwise wasted energy, you effectively offset other heating costs in the facility, improving overall efficiency.
Plant Air Compressor Maintenance Tips and Checklist
Routine maintenance is critical to keep your plant air compressor running safely and efficiently. Below are maintenance best practices for industrial air compressors:
- Follow Manufacturer Schedules: Always start with the compressor manufacturer’s recommended maintenance schedule. This typically includes daily/weekly checks (oil levels, drains), monthly inspections (belt tension, coupling alignment), and periodic part replacements (oil filters, air filters, separators, lubricant changes, etc.). Staying within recommended service intervals will ensure warranty compliance and optimal performance.
Daily/Weekly Checks:
Plant personnel should do quick visual and audio inspections regularly. Look and listen for anything abnormal – vibrations, belt squeal, bearing noise, or leaks (hissing sounds). Check that pressure and temperature readings are in normal range. Drain water from moisture traps and receiver tanks daily (unless automatic drains handle this). In moist climates or heavy use, an astounding amount of water can collect daily. Log key readings like operating pressures, temperatures (oil cooler exit temp, aftercooler temp), and amperage if possible. Logging helps track trends and catch issues early (e.g., a creeping discharge temperature might indicate a fouled cooler or low oil). Also ensure ventilation around the compressor is clear – blocked cooling airflow can lead to overheating.
Periodic Maintenance Tasks:
Create a checklist of tasks to perform at scheduled intervals. A thorough maintenance checklist should include items such as:
-
- Inspecting the air intake filter – clean or replace it if dirty. A clogged intake filter makes the compressor work harder (less air coming in means it must run longer to deliver the same output).
- Checking and tightening belts (for belt-drive units) – replace belts if worn or frayed. Proper belt tension ensures efficient power transmission.
- Checking coupler alignment and condition on direct-drive units. Misalignment between motor and compressor can cause vibrations and premature wear.
- Logging motor bearing temperatures and airend (compressor) bearing temperatures if accessible. Rising bearing temps could indicate lubrication issues or wear.
- Lubrication and oil: Monitor oil level and do regular oil changes per the manufacturer’s hour schedule. Change the oil filter at the same time. If the compressor has an oil-air separator (in rotary screws), replace it at recommended intervals – a clogged separator can cause high pressure drop and oil carryover. Consider oil analysis periodically to check for contaminants or degradation.
- Coolers: Blow out or clean the aftercooler and oil cooler fins to ensure proper heat dissipation. If these get coated in dust or oil, the compressor will run hot.
- Drains and traps: Verify that condensate drains (automatic drains on tanks, filters, dryers) are functioning. If manual, drain them routinely and especially during humid conditions.
- Safety devices: Test pressure relief valves (make sure they’re not stuck), and check that temperature and pressure sensors/shutoffs work (many compressors have high-temp cutouts – ensure they would trip if needed).
- General: Check for any loose bolts, pipe supports, or mounting issues. Vibration over time can loosen connections. Also, inspect electrical connections for overheating or looseness (with power off).
- Maintenance Logs: Record the dates of service, what was done, and any readings/observations. This helps identify patterns (e.g., oil gets dirty faster than expected, perhaps due to harsh environment) and provides traceability. Rasmussen Mechanical even provides downloadable log sheets and emphasizes logging key data like hours run, pressure settings, filter change dates, etc., as part of an effective maintenance strategy.
- Leak Checks: As part of maintenance, include leak detection rounds.
- Motor and Electrical: Don’t neglect the electrical side. Ensure the motor is kept clean (dust can insulate it and cause overheating). If it has grease fittings for bearings, grease as per schedule (do not over-grease). Monitor amp draw; if amps begin creeping up over months for the same pressure output, it might indicate wear or developing problems causing the compressor to work harder.
Compressed Air 101
Compressed air is a core utility in industrial operations—often called the “fourth utility” alongside electricity, water, and natural gas. It powers pneumatic tools, machinery, and systems with reliability and efficiency. Choosing the right industrial air compressor depends on your performance needs, air demand, and budget.
Rotary screw compressors are ideal for continuous, high-efficiency operation, while centrifugal air compressors excel in high-capacity, low-maintenance applications. Each type serves different industrial needs.
To select the best air compressor, consider factors like required air pressure, flow rate, and air quality. A solid understanding of compressed air fundamentals ensures your system delivers consistent, cost-effective performance across your facility.
Air Compressor Components
Key air compressor components—including air filters, air dryers, and piping—are critical to system efficiency, reliability, and air quality. These elements work together to prevent contamination, minimize pressure loss, and protect downstream equipment.
Air filters remove dust, dirt, and solid particles, preserving compressor performance and extending equipment life. Regular filter replacement or cleaning prevents pressure drops and supports optimal airflow.
Air dryers eliminate excess moisture that can lead to corrosion and system damage. Common types include refrigerated, desiccant, and membrane dryers, each suited for different applications and moisture levels.
Piping distributes compressed air across the facility. Using corrosion-resistant materials like aluminum, stainless steel, or copper, and minimizing bends, helps maintain pressure and reduce energy loss.
Air Compressor Installation
Proper air compressor installation is key to ensuring reliable, efficient system performance. It requires thoughtful planning around space, power supply, and piping design. A well-executed setup can lower energy costs, reduce maintenance needs, and support long-term operational efficiency.
Start by assessing the installation space. Ensure adequate ventilation to dissipate heat and allow easy access for routine maintenance. The electrical system must support the compressor’s load, including any connected components like air dryers or aftercoolers, with proper grounding for safety.
Piping design plays a crucial role. Use correctly sized pipes, minimize sharp bends, and consider looped systems to maintain steady pressure and reduce energy loss. Poor piping can lead to pressure drop and decreased system efficiency.
Once installed, regular inspections and preventive maintenance are essential. Establish a schedule to check filters, drains, and connections, helping you catch small issues before they lead to downtime.
Centrifugal Air Compressors
Centrifugal air compressors are high-capacity compressors that utilize centrifugal force to compress air. These compressors are designed for continuous operation and are commonly used in large-scale industrial applications, such as power generation, oil and gas, and chemical processing. Centrifugal compressors offer several advantages, including high efficiency, reliability, and minimal maintenance requirements. However, they can be more expensive than other types of compressors and require specialized installation and maintenance.
The working principle of centrifugal air compressors involves the use of high-speed impellers to accelerate and compress the air. As the air passes through the impellers, its velocity increases, and it is then converted into pressure energy. This process allows centrifugal compressors to deliver large volumes of compressed air at high pressures, making them suitable for applications with significant air demand.
One of the key benefits of centrifugal compressors is their ability to provide oil-free air, as the compression process does not involve any oil contact. This makes them ideal for applications where air purity is critical, such as in the food and beverage, pharmaceutical, and electronics industries. Additionally, their robust design and fewer moving parts contribute to their reliability and long service life.
Industrial Applications
Industrial air compressors have a wide range of applications across various industries, including manufacturing, construction, and oil and gas. Compressed air is used to power pneumatic tools, machinery, and equipment, and is also used in processes such as painting, cleaning, and drying. The use of compressed air can offer several advantages, including increased productivity, improved efficiency, and reduced energy costs. However, it is essential to select the right air compressor and components for a specific application to ensure optimal performance and reliability. Ingersoll Rand, Atlas Copco, and Kaishan are some of the leading manufacturers of industrial air compressors, offering a range of models and services to meet the diverse needs of industries worldwide.
In manufacturing, compressed air is indispensable for powering assembly lines, operating pneumatic tools, and controlling automation systems. Its reliability and versatility make it a preferred choice for tasks that require precision and consistency. In the construction industry, air compressors are used to power tools such as jackhammers, nail guns, and sandblasters, enabling efficient and high-quality work.
Leading manufacturers like Gardner Denver, Ingersoll Rand, Atlas Copco, and Kaishan offer a wide range of industrial air compressors designed to meet the specific needs of different industries. These companies provide not only high-quality compressors but also comprehensive services, including installation, maintenance, and technical support, to ensure optimal performance and reliability.
Plant Air Compressor Conclusion
In summary, selecting the right plant air compressor system involves more than choosing a compressor—it’s about designing a complete, efficient setup tailored to your facility’s needs. Reciprocating compressors are an ideal choice for smaller demand ranges and specific applications such as oil extraction and pneumatic controlled packaging. Proper sizing not only supports future development but also optimizes overall business performance by maintaining operational efficiency and continuity. These tanks, along with other accessories, enhance the overall performance of the air compressor system. Aftercoolers, along with nitrogen generators, contribute to enhanced operational productivity. Additionally, VSD compressors allow businesses to focus on core activities by providing reliable and efficient compressed air solutions. With the right equipment and support partner in place, your facility can reduce energy costs, prevent downtime, and ensure consistent performance across all operations.
