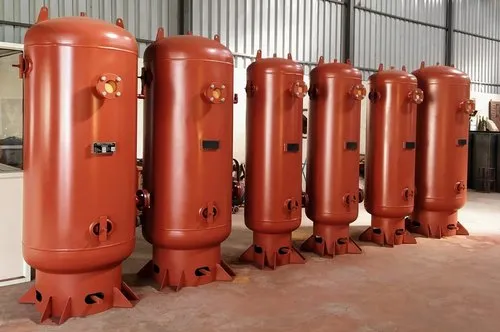

A wet air tank, also known as a wet receiver, primarily removes moisture and protects downstream equipment. It is placed immediately after the air compressor and before the dryer.
How Wet Air Tanks Improve Compressed Air Systems
Its primary function is moisture separation. As hot compressed air enters the tank, it cools, causing 60-70% of water the vapor to condense. This significantly reduces the burden on air dryers and filters, improving drying efficiency and lowering maintenance costs. Removing moisture early in the process also prevents water-related damage to air tools, piping, and pneumatic equipment.
Sizing
Proper sizing is critical for performance. Traditional guidelines recommend 1 to 3 gallons of storage per cubic foot per minute (cfm) of compressor capacity. The DOE suggests a more tailored approach based on system design and demand patterns. A common practice is to allocate one-third of total storage capacity to the wet receiver and the remainder to dry storage. This setup allows for efficient moisture separation while maintaining adequate reserve air for peak demands.
The tank’s pressure rating should be at least equal to the compressor’s maximum output pressure. However a safety margin of 25-30% is recommended to accommodate pressure fluctuations. For instance, if the compressor operates at 120 PSI, the receiver should be rated for at least 150 PSI. Additionally, equipping the tank with safety relief valves is essential to release excess pressure and prevent over-pressurization.
Best Practices
Routine maintenance, including regular draining, is essential to prevent water buildup and corrosion inside the tank. Installing automatic or zero-loss drain valves ensures consistent condensate removal without manual intervention.
Installing an oil-water separator next to your wet air tank is best practice for proper condensate management. Since the wet receiver collects moisture and oil carryover from the compressor, the condensate drained from it often contains contaminants. These contaminants cannot legally be discharged directly into a floor drain.
Finally, vertical wet air tanks are often preferred as they occupy less floor space and allow for better drainage of condensate.
Wet vs. Dry Receivers: Key Differences
Wet receivers are installed before air dryers and focus on moisture removal . Dry receivers, placed after air dryers, store clean, dry air and stabilize pressure. They prevent pressure drops, ensuring consistent airflow to equipment. This is critical for industries requiring precise air quality, such as manufacturing and pharmaceuticals.
A balanced system typically allocates one-third of storage to wet receivers and two-thirds to dry receivers . For a 1,000-gallon system, this means 300 gallons for moisture separation and 700 gallons for stable airflow .
Common Applications for Wet Air Tanks
Wet air tanks are widely used in industrial facilities that rely on compressed air for production. They are especially beneficial in environments where high moisture levels are common, such as food and beverage processing, pharmaceutical manufacturing, and chemical plants . In these industries, excessive moisture can cause contamination or product defects, making proper air treatment essential.
Manufacturing plants that use pneumatic tools, CNC machines, or robotics also benefit from wet receivers. By reducing moisture before air reaches sensitive equipment, these tanks help maintain precision, prevent rust, and extend tool life .
In automotive shops and spray painting operations , wet receivers play a crucial role in ensuring consistent air quality . Moisture in the air can negatively affect paint finishes and adhesion, leading to costly rework. A wet receiver minimizes this risk by removing water before it reaches the spray gun or air tools .
Signs You Need a Wet Receiver in Your System
If your system experiences frequent water buildup in piping or excessive drian cycling in dryers, adding a wet air tank may be a solution. Other signs include excess moisture in end-use applications, pressure fluctuations, and compressor inefficiency .
When properly integrated, a wet receiver helps improve air quality, reduce equipment strain, and optimize system performance.
Conclusion
A wet air tank (or wet receiver) is a vital component in any compressed air system, enhancing moisture removal, system efficiency, and equipment longevity. By cooling compressed air immediately after it leaves the air compressor, a wet receiver removes 60-70% of water vapor, significantly reducing the workload on air dryers and filters. This leads to lower maintenance costs, improved air quality, and better performance for pneumatic tools, CNC machines, and other critical equipment.
Proper wet air tank sizing is essential for optimal operation. A common recommendation is 1 to 3 gallons per CFM of compressor capacity, with one-third of total air storage allocated to the wet receiver and the remaining two-thirds to dry storage. Ensuring the pressure rating is at least equal to the compressor’s max output, with a 25-30% safety margin, prevents over-pressurization and system failures. Additionally, installing automatic drain valves and an oil-water separator ensures proper condensate removal and compliance with regulations.
Industries such as manufacturing, food and beverage processing, pharmaceuticals, and automotive repair rely on wet receivers to protect sensitive equipment and maintain high air quality. If your system experiences excess water buildup, frequent dryer drain cycling, pressure fluctuations, or compressor inefficiency, adding a wet air tank can be a game-changer.
By integrating a properly sized wet receiver, businesses can improve compressed air reliability, extend equipment life, and reduce operating costs. Investing in the right wet air tank setup today ensures better system efficiency, lower maintenance, and optimal air quality for years to come.
