A compressed air system is a reliable energy source used across various industries. Compressed air is often referred to as the “fourth utility” due to its importance alongside electricity, water, and gas. It is a safe and efficient method for powering a wide range of equipment.
Compressed Air Applications
Compressed air is essential for transferring energy to a variety of industrial equipment, such as:
- Pistons
- Air knives
- Packaging equipment
- Paint booths
- Vacuum systems
- Abrasive blasting machines
- Hand tools
- Blow molding machines
- Aeration systems
- Pneumatic conveying systems
Without a compressed air system, you would need to rely on electricity. However, electricity can pose risks in environments with washdown equipment or other areas where water is present. While battery-powered tools are becoming more common, compressed air continues to offer superior horsepower and higher capacity, making it indispensable in many industrial settings.
The Different Types of Compressors

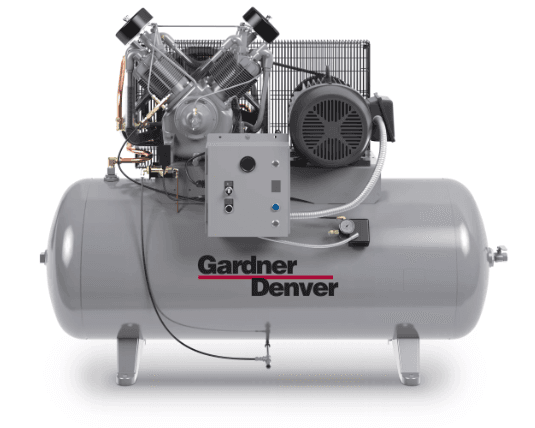

Reciprocating Compressor
Here are the five most common types of compressors:
1. Reciprocating (Piston) Compressors
Reciprocating compressors are best for applications requiring between 2 and 25 horsepower (HP). These compressors are known for their reliability and require minimal maintenance. However, they have a limited duty cycle, meaning they need time to cool down after running for extended periods. Continuous operation without cooling will reduce the lifespan of these compressors, making them less suitable for large-scale industrial use.
2. Scroll Compressors
Scroll compressors are often chosen for oil-free air applications and generally are between 10 HP and 30HP. They’re commonly used in environments that require clean air, such as hospitals and dental offices. These compressors operate quietly and are efficient for medical applications. It’s important to note that installing medical air compressors must comply with National Fire Protection Association standards. Installing technicians must be certified to complete these installations.

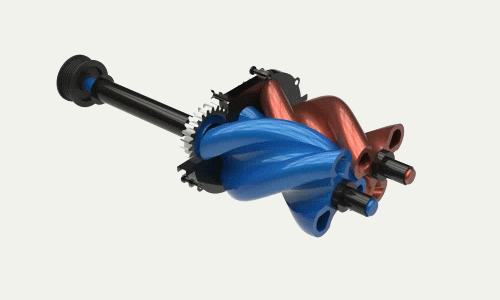

Lysholm screws found inside a rotary screw air compressor.
3. Rotary Screw Compressors
Rotary screw compressors are widely used in industrial applications ranging from 5 HP to over 1000 HP. They operate by using a pair of interlocking screws to compress air. These compressors are generally oil-injected, which cools, lubricates, and seals the screws. Though highly reliable and capable of continuous operation, oil maintenance can be costly. Additionally, it’s crucial to maintain a proper oil filtration system to prevent oil contamination downstream.
4. Rotary Vane Compressors

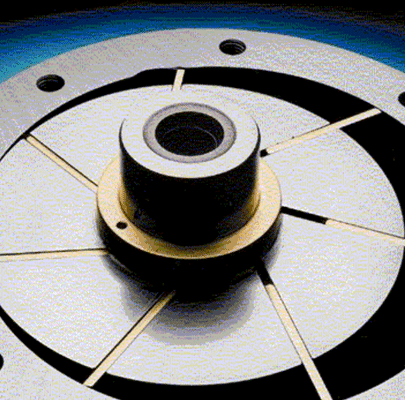

Rotary Vane Internals
These compressors use centrifugal force to push vanes outward against the compressor’s housing, creating compression. These compressors are quieter than reciprocating and rotary screw compressors. They generally cost 10% less than rotary screw models but may not be as efficient as other compressor types. Rotary vane compressors are also relatively easy to maintain and can be variable speed, making them efficient for various industrial uses.
5. Centrifugal Compressors
Centrifugal compressors are typically used in large industrial settings with systems requiring 200 to 600 HP. These compressors are oil-free and operate by accelerating air through a series of spinning impellers, creating high-speed airflow that generates compression. Centrifugal compressors are valued for their small footprint, low noise levels, and high efficiency, especially in applications requiring variable speed control.
Oil-Flooded vs. Oil-Free Compressed Air Systems
Oil-Flooded Compressors
An oil-flooded compressor injects oil into the compression chamber to lubricate, cool, and seal the moving parts. However, small amounts of oil can make their way into the air stream, even with advanced filtration systems. Food-grade oils are available for sensitive applications. However, they tend to be more expensive and require frequent oil changes (often around 2000 hours vs 7,000+ hours for non-food grade). These compressors are not ideal for industries like food manufacturing or healthcare, where even trace amounts of oil can cause contamination.
Oil-Free Compressors
Oil-free compressors use oil only in the crankcase, keeping the compression chamber completely oil-free. This makes them a more suitable option for applications requiring ultra-clean air, such as pharmaceutical, food processing, and medical facilities. While oil-free compressors eliminate the risk of oil contamination, they tend to be more expensive and may have higher maintenance requirements in certain environments.
Filtering And Drying Compressed Air
Proper treatment is essential to ensure that a compressed air system delivers clean and dry air, free of particulates, moisture, and oil.
1. Coalescing Filters
Coalescing filters remove oil, water, and particulates by causing them to coalesce (combine) on the filter element. The contaminants then settle at the bottom of the filter and are drained away. There is a mechanical float on the bottom of these filers but they sit in hot oily water all day. After a couple of years they have a tendency to get mucked up and stops working. Clogged filters or blocked drains can result in contaminants moving downstream. We recommend to install timer drains or zero-loss auto drains to ensure the system operates efficiently and remains free of blockages.
2. Refrigerated Dryers
Refrigerated dryers cool compressed air to remove moisture, bringing the dew point down to approximately 38 degrees. These dryers are energy-efficient and cost-effective but may not be suitable for outdoor or cold environments where temperatures drop below freezing. In such cases, moisture in the air can condense and form ice inside the pipes, potentially causing damage to the system.
3. Desiccant (Regenerative) Dryers

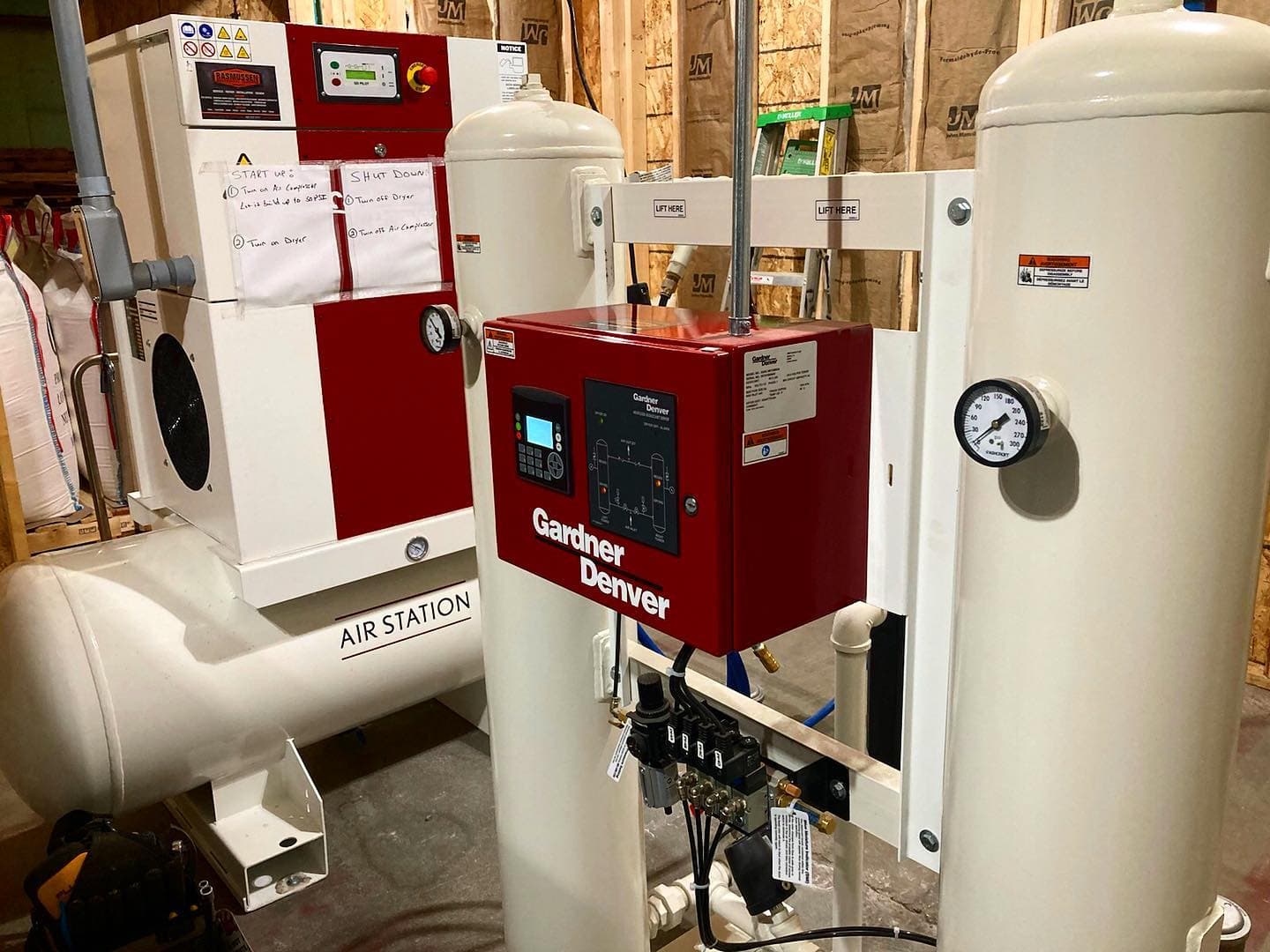

Desiccant Dryer
These dryers use activated alumina or silica gel to absorb moisture from compressed air. They can achieve dew points as low as -40°F to -100°F. and are ideal for applications requiring ultra-dry air. However, desiccant dryers are more energy-intensive and require regular replacement of the desiccant material. Additionally, oil contamination can degrade the efficiency of the desiccant, reducing the dryer’s capacity.
A regen dryer has two towers: the loaded (cycle) tower and the unloaded (non-cycle) tower. Air flows through one tower, where moisture is absorbed by activated alumina beads, while the other tower regenerates. The beads, like sponges, wick moisture. When saturated, heat or cooling is used to remove the moisture. A failing coalescing filter can allow oil to contaminate the beads, reducing the dryer’s capacity and efficiency.
Compressed Air Storage
Compressed air systems rely on receiver tanks for air storage and pressure stabilization. There are two main types of receiver tanks:
- Wet receivers: These are installed before the air dryer. They provide a place for oil and moisture to settle out before reaching the dryer, thereby reducing the load on the dryer.
- Dry receivers: These store clean, dry compressed air, ensuring an adequate supply is available to meet demand fluctuations.
Both types of tanks are crucial to maintaining an efficient compressed air system and reducing the frequency of compressor cycling. This will extend the life of the compressor and improve system efficiency.
Energy Efficiency in Compressed Air Systems
One of the most critical aspects of operating a compressed air system is ensuring it runs as efficiently as possible. Compressed air is often one of the largest consumers of electricity in industrial facilities. It accounts for up to 30% of total energy costs in some cases. Inefficiencies, leaks, and poorly maintained systems can waste significant amounts of energy, leading to higher operational costs.
One of the simplest ways to improve efficiency is by minimizing air leaks. Regular inspections using ultrasonic leak detectors can help identify and fix leaks before they result in significant energy loss. Additionally, implementing a leak detection program and training staff to recognize potential issues is essential for keeping your system running optimally.
Another key area to focus on is pressure optimization. Many facilities run their compressed air systems at higher pressure levels than necessary, believing that more pressure equals better performance. However, every 2 PSI increase in pressure can raise energy consumption by about 1% (DOE Improving Compressed Air System Performance). Carefully monitoring and adjusting pressure settings to match the actual needs of your equipment can result in significant energy savings over time.
The Importance of Proper Maintenance in Compressed Air Systems
Regular maintenance is crucial to ensure your compressed air system operates efficiently and has a long service life. Without proper care, the system’s components can wear down faster, leading to breakdowns and unplanned downtime, which can significantly impact productivity. A well-maintained system will also minimize the risk of contamination, ensuring clean, reliable air for your processes.
Preventive maintenance schedules should include regular inspections of the compressors, filters, dryers, and receiver tanks. Compressors, whether oil-flooded or oil-free, require periodic oil changes, filter replacements, and inspections of key components like screws, vanes, or pistons. For oil-flooded systems, regular oil sampling and analysis can help identify any contamination or degradation issues before they cause significant damage.
Additionally, air treatment components such as filters and dryers need regular attention. Coalescing filters should be replaced as recommended by the manufacturer to prevent a drop in air quality. Desiccant materials in dryers must be regenerated or replaced to maintain efficiency. Skipping these essential maintenance tasks can lead to system inefficiencies and higher energy costs. This is because the compressor has to work harder to compensate for performance drops in other parts of the system.
Choosing the Right Compressed Air System for Your Facility
When selecting a compressed air system, it’s important to take into account air quality requirements, energy efficiency goals, and application. Different industries have unique needs. Choosing the right compressor type—whether it’s reciprocating, rotary screw, or centrifugal—can impact both your upfront investment and long-term operational costs.
Another consideration is whether your facility would benefit from variable speed compressors. These compressors can adjust their motor speed to match the demand. This can result in significant energy savings, especially in operations with fluctuating air requirements. While more expensive than fixed-speed models, variable speed compressors can often pay for themselves through energy savings over time.
Conclusion: Optimizing Your Compressed Air System
Maintaining a compressed air system involves regular upkeep of compressors, filters, dryers, and receiver tanks. Ensuring proper maintenance will help reduce energy consumption, minimize downtime, and extend the lifespan of your equipment.
Whether you’re running a small workshop or managing a large industrial facility, understanding your needs is important. The right combination of compressor type, air treatment, and storage solutions will keep your compressed air system running smoothly and efficiently.
