Low water boiler conditions occur when the water level inside a boiler falls below the safe operating threshold. This issue can arise from various causes, including:
- System Leaks: Piping or component failures can lead to water loss.
- Improper Feedwater Supply: Inadequate water flow into the boiler due to pump failure or feedwater system issues.
- Operator Error: Neglecting regular monitoring or improper system setup.
- Carry Over: Excessive water carryover into the steam system can cause fluctuating water levels, making it difficult to maintain adequate levels in the boiler.
Low water boiler conditions increase the risk for overheating, which can damage critical components and compromise system integrity.
How Low is Too Low?

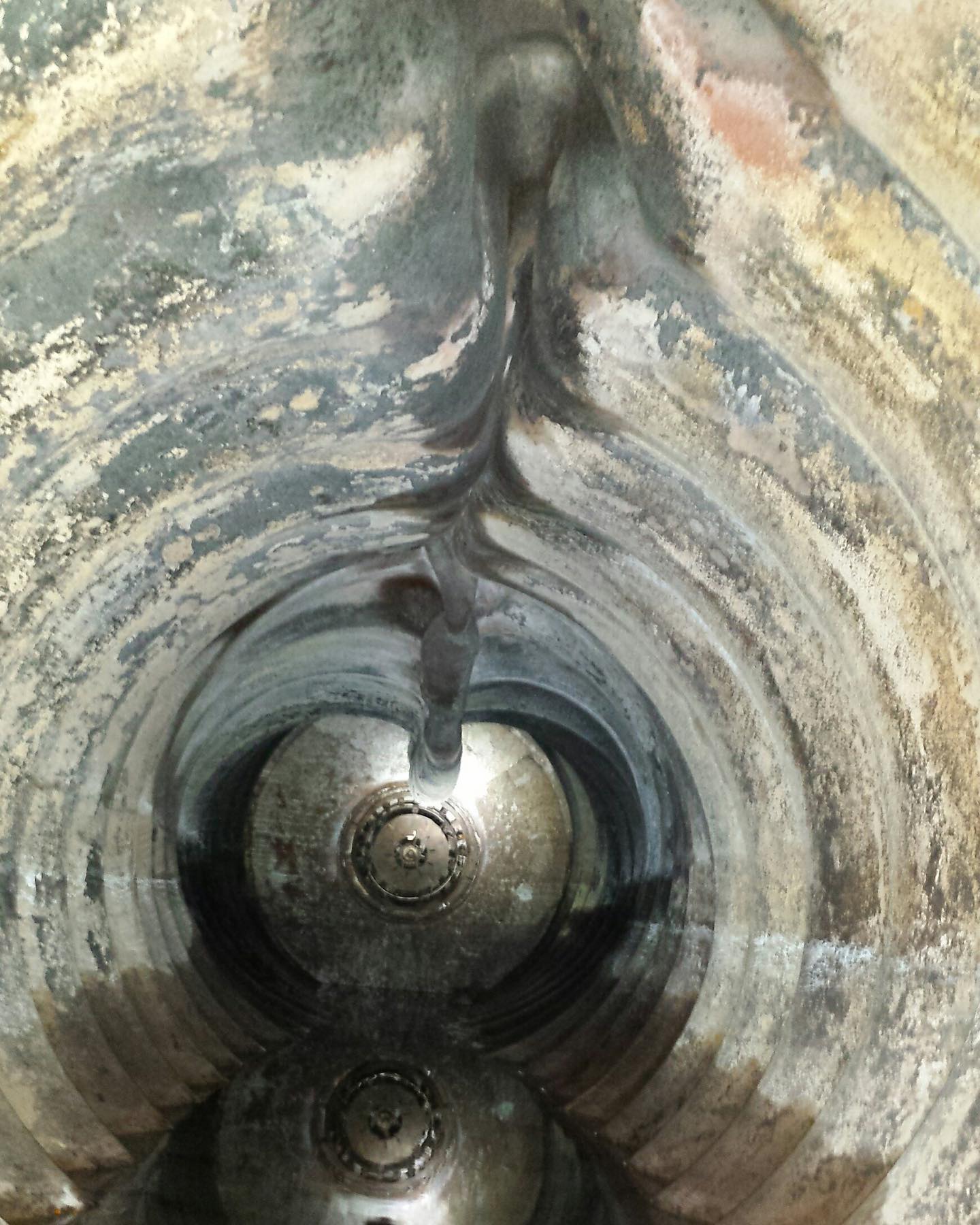

A low water condition in a boiler happens when the water level drops below the lowest permissible water level. If the water gets lower than the boiler tubes or down to the Morrison tube, the steel itself may fail. This critical threshold marks the point at which the boiler transitions from a manageable situation to a potential catastrophic failure.
Common damage caused by low water includes:
- Loosened tubes
- Cracked tubes
- Melted metal
- Leaking water
One of the most dangerous outcomes occurs when water is added to a boiler that has already passed the “point of no return”. The sudden addition of water can cause it to flash into steam instantly, generating tremendous pressure and potentially leading to a catastrophic explosion. Proper maintenance and vigilant monitoring are critical to avoid reaching this stage.
Why Low Water Conditions Are Dangerous
Low water conditions pose significant risks:
- Overheating of Boiler Components: When water levels drop, metal surfaces exposed to high temperatures can warp, crack, or fail.
- Pressure Vessel Damage: Boilers are designed to operate within specific pressure and temperature limits. Low water conditions can lead to a rapid rise in temperature, causing a catastrophic failure.
- Costly Repairs and Downtime: Addressing damage caused by low water conditions can result in significant repair costs and extended system downtime.
The National Board of Pressure Vessel Inspectors emphasizes the importance of maintaining adequate water levels and ensuring proper equipment functioning to mitigate these risks.
Preventing Low Water Boiler Conditions
Preventing low water conditions in a boiler is essential for safety, efficiency, and equipment longevity. Here are the best practices to avoid this potentially hazardous situation:
1. Monitor Water Levels Daily
- Regularly inspect the sight glass to ensure water levels are within the safe range.
- Familiarize yourself with the normal operating water level for your specific boiler.
2. Use Low Water Cutoffs (LWCOs)
- Install both a primary and secondary LWCO for redundancy.
- Choose between float-type and probe-type LWCOs based on your system’s requirements.
- Test and maintain LWCOs regularly to ensure they function correctly.
3. Perform Routine Maintenance
- Create and adhere to a comprehensive maintenance and inspection schedule.
- Include blowdowns, LWCO testing, and sight glass cleaning as part of routine procedures. Clean and inspect the boiler, feedwater pumps, and piping regularly.
4. Automate Monitoring Systems
- Use automated control systems that provide real-time monitoring of water levels.
- Set up alarms and automatic shutdown features to act quickly if water levels drop.
5. Address Leaks Promptly
- Inspect piping, valves, and other components for signs of leakage.
- Repair or replace any damaged parts immediately to prevent water loss.
6. Maintain Feedwater Systems
- Ensure feedwater pumps are functioning correctly.
- Use deaerators or water treatment systems to prevent issues that could compromise feedwater flow.
7. Train Operators
- Provide thorough training on boiler operation and water level monitoring.
- Teach operators how to respond to low water conditions effectively.
8. Implement A Solid Water Treatment Program
- Treat feedwater to minimize scale, sediment, and corrosion.
- Regularly test water quality to adjust treatment processes as needed.
By following these practices, you can significantly reduce the risk of low water conditions in your boiler and ensure safe, reliable operation. Let me know if you want further details on any of these methods!
