Boiler installation is more than a construction project. From selecting the right equipment to tuning the burner, each step affects how your system operates for the next 15–30 years.
Fuel costs make up nearly 80% of a boiler’s lifecycle expenses. That means even small improvements in efficiency can yield major savings. Yet, about half of industrial boilers in the U.S. are over 25 years old. Many are limping along at reduced capacity and elevated fuel consumption.
This guide walks through the key phases of boiler ownership—from installation to daily operation, and efficiency upgrades. Whether you’re overseeing a new system install or trying to improve an aging unit, the right knowledge is key.
Boiler Installation: Getting it Right from Day One
The Importance of Planning
A successful installation starts with smart planning. Mistakes made here can saddle your facility with persistent issues—like oversized equipment, poor venting, or system incompatibilities.
Key pre-installation considerations include:
- Boiler sizing: Must be based on accurate load data, redundancy plans, and future growth—not guesswork.
- Auxilary equipment: A boiler by itself is usless. Spend the time to understand feedwater treatment, condensate return, blowdown systems, BMS, and burners.
- Site readiness: Check space constraints, floor loading, access for crane or rigging, and code compliance.
A qualified engineer or boiler contractor should be involved early in the process to help avoid the “install now, fix later” trap.
Boiler Selection
Choosing the wrong boiler for your application is a mistake that’s hard to undo.
- Firetube boilers are common in low-to-medium pressure applications and are simpler to maintain.
- Watertube boilers handle higher pressures and capacities and are ideal for process loads.
- Condensing boilers are great for low-temperature systems and can reach efficiencies in the 90s, but are generally unsuitable for high-pressure steam.
The best choice depends on your pressure, temperature, and fuel type—and on whether your goal is lowest upfront cost or best long-term performance.
Installation Best Practices
A properly installed boiler will run more efficiently, last longer, and require fewer repairs.
Important best practices include:
- Foundation: The boiler must sit level on a properly prepared pad or skid with vibration isolation if needed.
- Piping layout: Supply and return piping should be insulated, supported, and sloped for drainage. Avoid thermal stress points.
- Combustion air and venting: Use 4–6 square inches of free vent area per boiler HP. Follow the manufacturer’s venting guidelines closely—this is a common failure point.
- Controls: Electrical and control wiring should be neatly routed, protected, and fully tested. This includes burner interlocks, safeties, flame sensors, and shutdown circuits.
Commissioning and Startup
Once mechanical work is complete:
- Conduct a hydrostatic test to verify pressure vessel integrity.
- Tune the burner using a flue gas analyzer to dial in optimal air-fuel ratios.
- Verify safety devices such as LWCOs, pressure relief valves, and flame safeguards.
- Train operators on startup/shutdown procedures, emergency response, and basic troubleshooting.
Don’t skip documentation—collect startup reports, tuning logs, and O&M manuals for future reference.
Boiler Operation: Mastering the Fundamentals
Every boiler operator needs to understand the three essential things: water, fire, and steam.

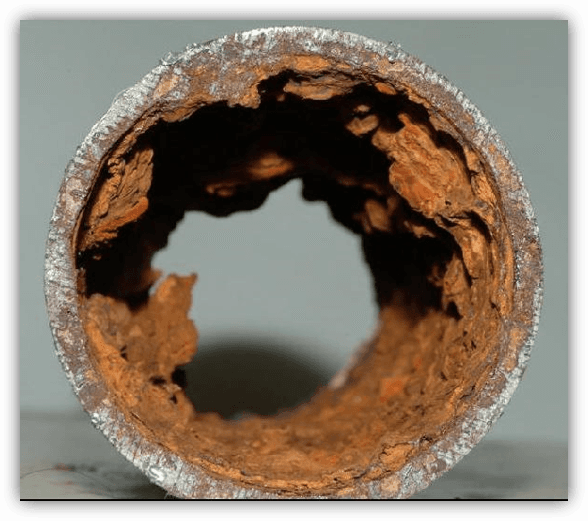

Corrosion caused by poor feed water.
Feedwater Quality and Treatment
Water is the lifeblood of a boiler. If it’s not properly treated, scale and corrosion will slowly destroy the system from within.
- Scale acts like insulation. Just 1/8 inch thick can cause as much as 20-25 percent loss in efficiency
- Corrosion eats away metal, weakening tubes and shortening equipment life.
- Carryover from untreated water can cause water hammer, valve damage, and wet steam that reduces process performance.
To prevent these issues, use deaerators to remove oxygen and carbon dioxide from the feedwater. Add chemical treatment to control pH, neutralize dissolved gases, and prevent scaling. Regular blowdowns should also be performed to remove accumulated solids and maintain target total dissolved solids (TDS) levels.
Combustion and Airflow
Combustion and AirflowBurning fuel cleanly and completely is one of the biggest opportunities to save energy.
Incomplete combustion wastes fuel and produces harmful emissions. On the flip side, too much excess air cools the flame and sends valuable heat up the stack.
Best practices:
- Ensure adequate combustion air (4–6 sq. in. per HP) and keep intake openings clear.
- Visually inspect the flame weekly for shape, color, and stability.
- Use a flue gas analyzer to monitor O₂, CO₂, CO, and stack temp.
- Tune the burner at least quarterly, especially during seasonal changes.
Many boilers now use linkageless controls, which provide more precise air-fuel mixing and better burner turndown ratios. Adding O₂ trim allows real-time feedback control for consistent combustion even as fuel or air density changes.
Efficiency Improvements That Pay Off
Thinking about efficency is a big step in boiler installation. Even a 2–3% efficiency gain can save thousands per year. The best part? Many upgrades pay for themselves quickly.
1. Recover Waste Heat

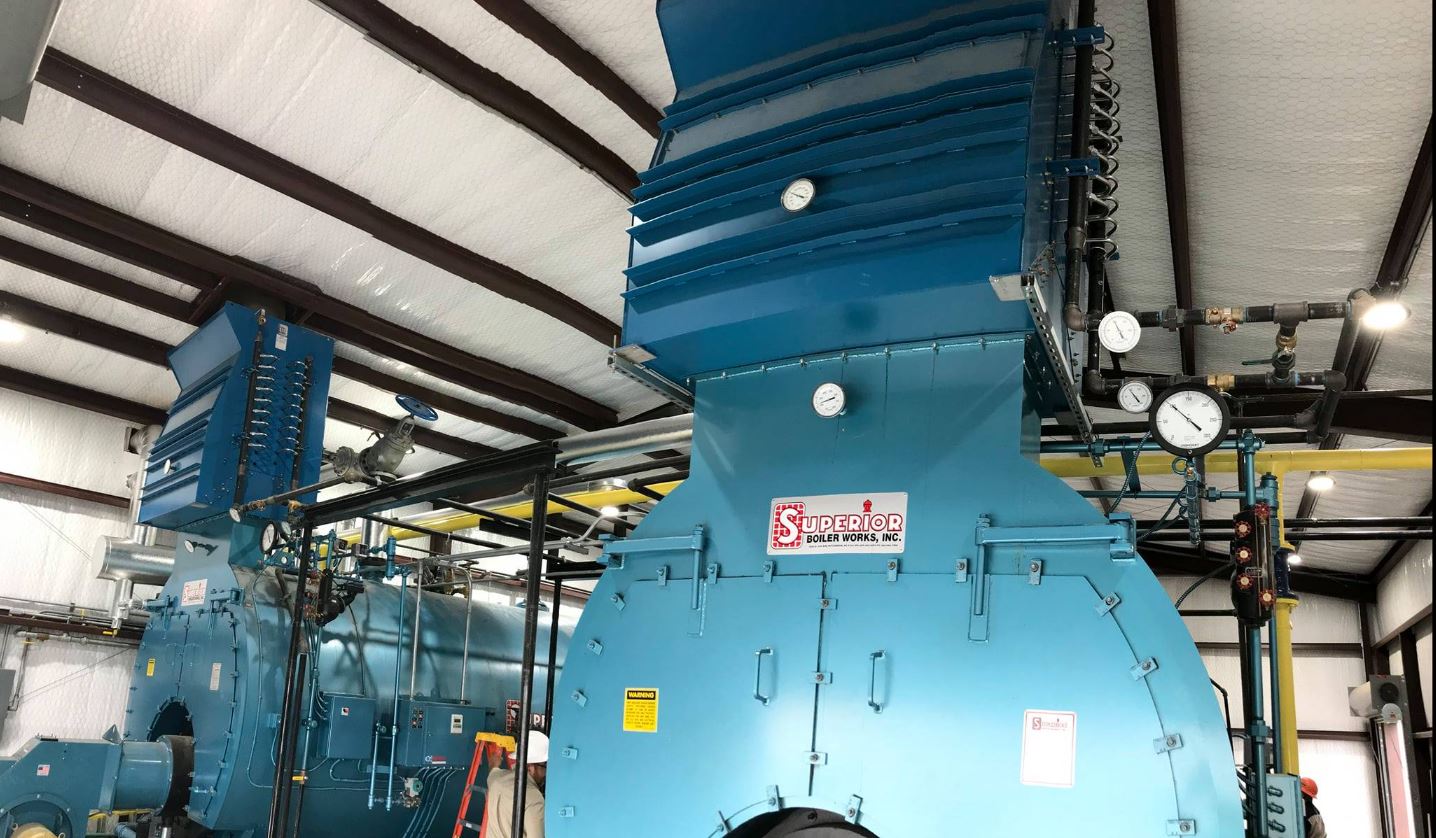

- Economizers preheat feedwater using exhaust gases. They can boost efficiency by 5–10%.
- Condensing economizers reclaim latent heat and work well with cool return water systems.
- Blowdown heat recovery units reclaim heat from blowdown water and transfer it to make-up water.
2. Return Hot Condensate
Condensate holds 10–16% of the energy used to create the steam. Don’t waste it. Use return lines and pumps to send it back to the boiler whenever possible.
3. Optimize Combustion
- Tune burners quarterly for facilities loacted in areas with 4 distinct seasons. (Temperature changes effect combustion!)
- Add O₂ trim for automatic fine-tuning.
- Upgrade from jackshaft to linkageless control for more precise air/fuel ratios.
- Every 40°F reduction in stack temperature or 1% drop in excess air = about 1% gain in efficiency.
4. Reduce Cycling and Idle Losses
To improve efficiency, install high-turndown burners that can better match system demand. Sequence boilers based on actual load to avoid running more equipment than necessary. Additionally, sometimes it makes sense to shut off idle boilers during nights or weekends. While this is not always the case, idleing can wastes fuel and increases wear.
5. Insulate Everything
- Piping, valves, tanks, and even the boiler shell.
- A single uninsulated valve can waste hundreds in heat loss every year.
6. Use Smart Controls
Today’s controls offer dashboards, alerts, and automation. Systems can sequence boilers, monitor performance in real time, and even notify you before problems arise. IoT sensors and predictive analytics are no longer just for massive facilities—they’re affordable, and they work.
Boiler Installation Conclusion
Boiler installation isn’t just a one-time project—it’s a long-term investment in safety, efficiency, and reliability. A properly planned and executed installation lays the foundation for decades of high performance and low operating costs.
Getting it right means more than setting the boiler in place. It requires proper sizing, system integration, code-compliant venting, and professional commissioning. Once installed, long-term success depends on consistent maintenance, quality water treatment, and smart combustion practices.
Efficiency improvements—from economizers to condensate return to modern controls—can deliver measurable savings and extend equipment life. Even small upgrades often pay for themselves in reduced fuel use and downtime.
If you’re planning a boiler installation or replacing an aging system, use this guide as a blueprint. A thoughtful approach today can prevent costly problems tomorrow—and turn your boiler room into a high-performing asset for years to come.
Boiler Installation FAQ
How much does boiler installation cost? Commercial boiler installations typically range from $50,000 to $250,000, depending on size, fuel type, and site conditions. High-pressure systems generaly cost more.
How long does installation take? Most boiler installations take 1 to 3 weeks, factoring in rigging, piping, controls, and commissioning.
Do I need permits? Yes. You’ll need mechanical, electrical, and sometimes state boiler permits. Installers must follow local codes and ASME standards.
What size boiler do I need? Boiler sizing should be based on load demand, redundancy, and future growth. Avoid guesswork—get a professional load calculation.
What’s included in a boiler installation? Typical installs include the boiler, burner, feedwater system, blowdown, venting, wiring, and startup services.
